Blue Pin Shackle - Screw Collar Pin
Blue Pin Shackles with a Screw Collar Pin are an economy range shackle solution used as a fastening or connecting device used in various applications, including lifting, rigging, towing, and securing loads.
Available to order as a Bow or Dee Shackle with a Working Load Limit up to 6.5 tonnes.
Essential components used in industries such as construction, maritime, towing, and material handling. Used to connect various equipment such as chains, wire ropes and straps to create secure and reliable connections. Screw Collar Pin Shackles are more suitable for applications where quick attachment is required.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
Economy range Blue Pin Shackles both serve the same purpose however our premium Green Pin range has been produced by a world-renowned manufacturer using state-of-the-art manufacturing processes ensuring all products fully conform to BS EN Standards (BS EN 1388). Despite having the same spec, Blue Pin Shackles are not manufactured in line with these standards and do not conform to all requirements in this.
Screw Collar Pin Shackles are a type of Shackle that incorporate a screw pin as its fastening mechanism. Shackles, in general, are U-shaped metal components with a removable pin or bolt across the opening, forming a loop that can be closed securely. The screw collar pin shackle, in particular, is characterised by its screw pin closure.
Screw Collar Pins are commonly used in situations where a secure connection is needed, and frequent opening and closing of the shackle are anticipated. They are widely employed in applications such as lifting, rigging, and general load securing. The screw pin design allows for quick and convenient attachment and detachment, making them suitable for various industrial uses.
We have both Bow Shackles (Anchor Shackles) and Dee Shackles (Chain Shackles) available.

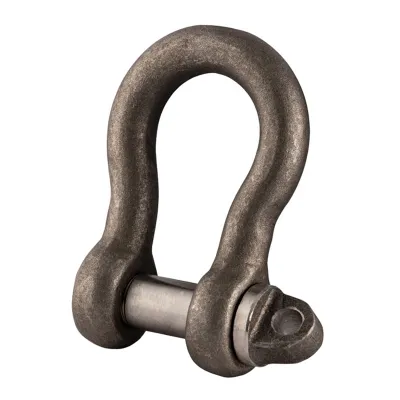

- Bow Shackles:
- Have a larger rounded shape to provide more room for multiple connections making them suitable for applications where multiple connections or angles are required.
- Commonly used in applications where a larger loop or clearance is needed in cases such as towing, lifting and anchor applications.

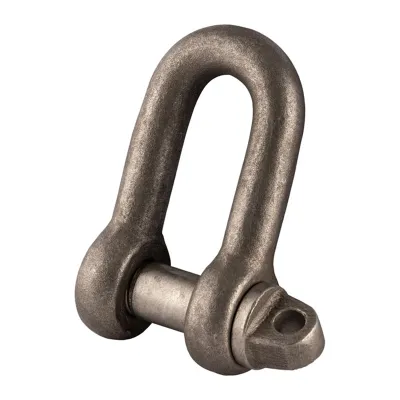

- Dee Shackles:
- Have a straight pin across the opening forming a D shape making them suitable for applications where a compact connection is required or suited.
- Preferred in applications where a narrower profile is required – commonly used in lifting and rigging situations.
Specifications:
- Manufactured from Grade 6 high tensile steel body and pin, quenched and tempered
- Hot Galvanised Finish
- Meets the W.L.L. requirements of EN 13889 and US Fed. Spec RR-C 271.
- Temperature Range: 0ºC up to +200ºC.
- Minimum Breaking Load: 6 times the Working Load Limit
- Marked with CE, W.L.L., Manufacturer's ID, size and traceability code
