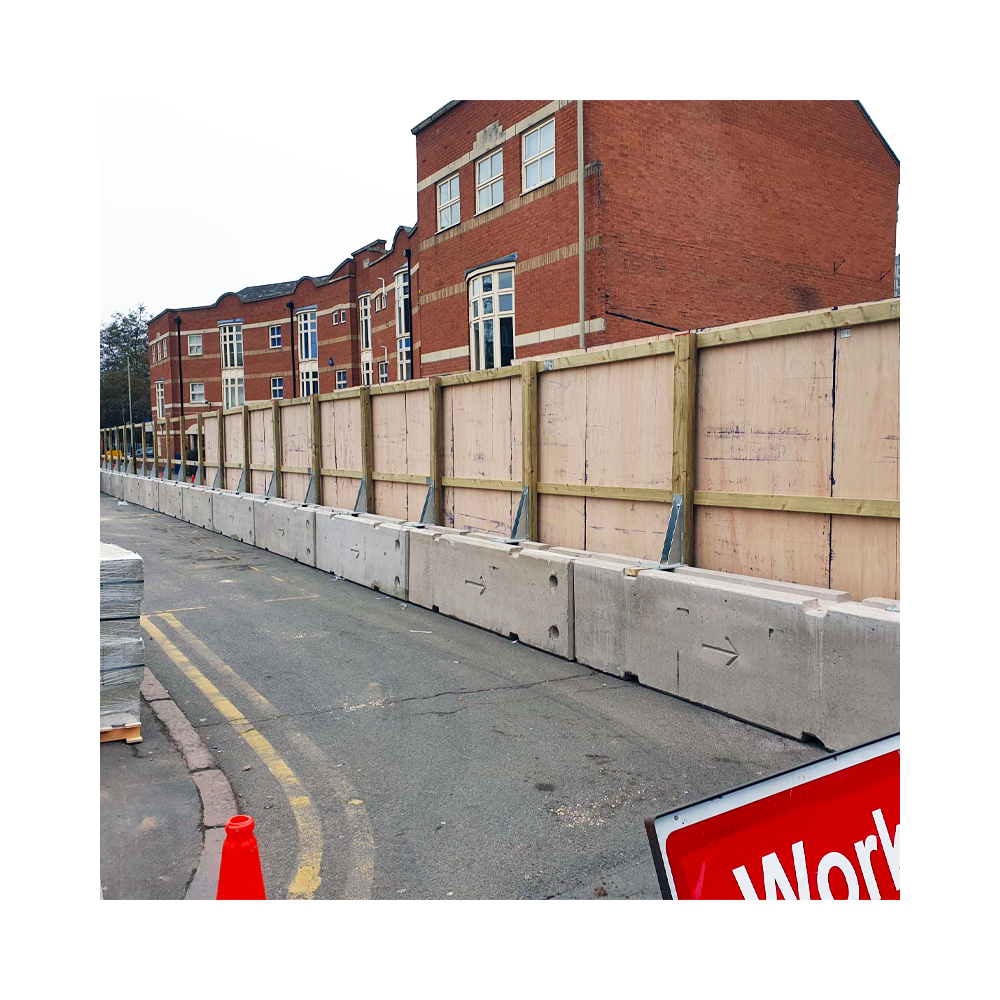

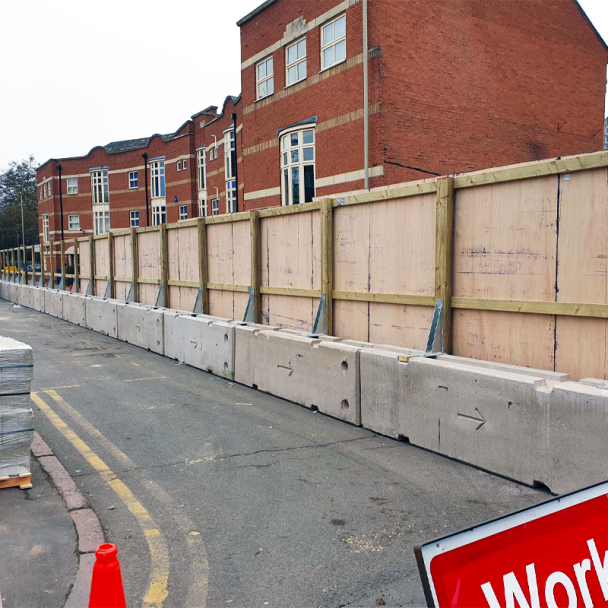

PCH Barrier
Precast Concrete TVCB (Temporary Vertical Concrete Barriers) fitted with Timber Plywood Hoarding. Each Concrete Barrier is 3150mm wide and 2400mm high once assembled the PCH Barrier is assembled.
A crash-tested concrete safety and security barrier with plywood hoarding extension. These Precast Concrete Barriers are manufactured using high-strength concrete (50N/mm2).
Precast Concrete Barrier Specifications:
Overall Length: 3150mm
Modular Length: 3000mm
Width: 450mm
Height: 800mm
Weight: 2500kg
Hoarding Specifications:
- Timber Board (Painted in clients colours)
- 1600mm high x 1200mm wide
- 6x3 C16 Posts
- 4x2 C16 Rails
- x3 fixed to post using M8 x 120mm coach screw – includes angle gusset for attachment with x4 no M10 x 120mm
- Thunderbolts and Washers – 18mm Hardwood throughout Plywood. Class 3 (fully rated for external use)
HERMEQ stock a wide range of Concrete Barriers, Traffic Management, Permanent Fencing & Temporary Fencing conforming to all required safety specifications and regulations.
