Crane Pallet Forks - Self-Balancing
Frequently Bought Together
SKU
IA3012

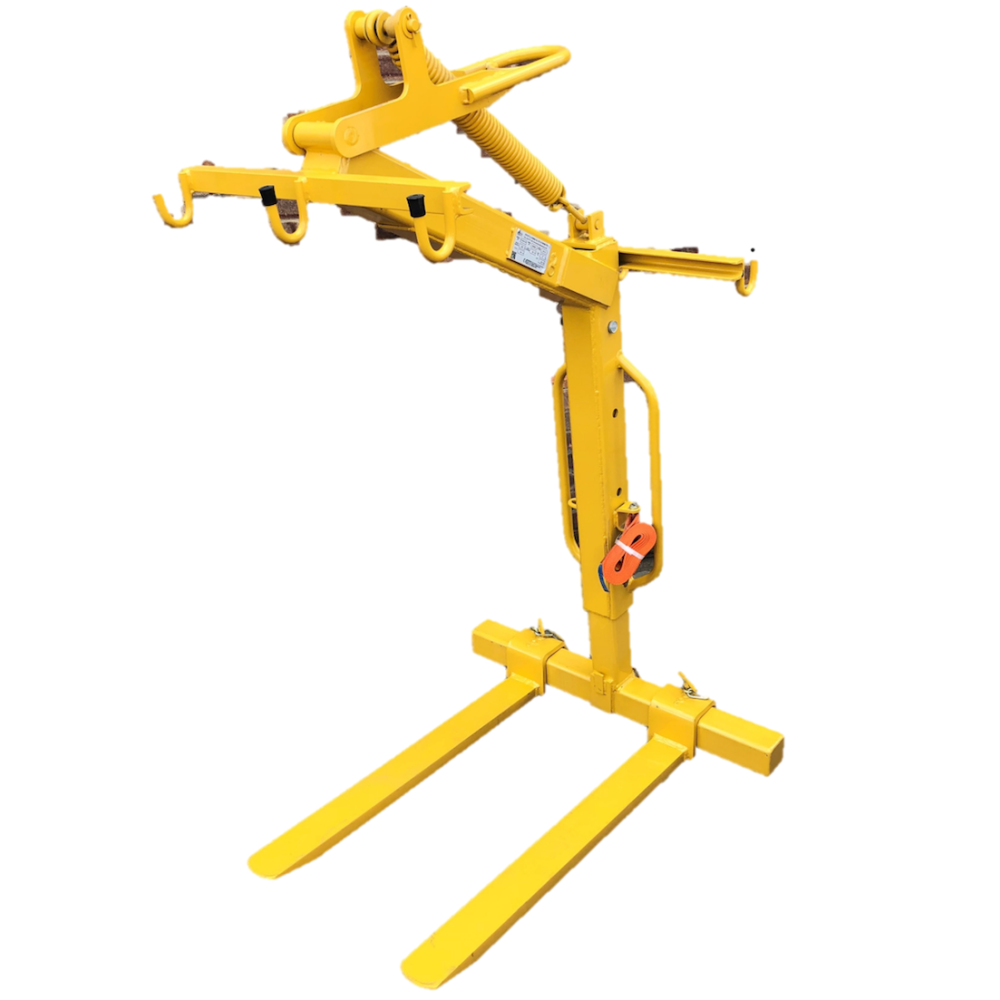

Crane slung automatic pallet forks, available with 1000mm & 1200mm forks. Crane pallet forks are most commonly used on construction sites where overhead cranes being used to move materials around site. Crane liftable self-balancing forks with safety nets supply a safe and efficient way of transporting building and construction material around site.
€1,450.19 €1,783.73
The Automatic Pallet Forks effectively convert an overhead crane into an effective pallet mover. There are many applications where fork trucks cannot be operated due to a lack of floor space for example high rise developments. Our crane forks are equipped with adjustable forks, height adjustment and an automatic balancing sprung head along with pre-fitted restraint net frame (net supplied separately).
| Fork Length (mm) | Fork Cross Section (mm) | Fork Opening Range (mm) | Overall Height (mm) | Weight (kg) | Load Capacity (kg) |
| 1000 | 100 x 35 | 300 - 1000 | 1800 - 2500 | 170 | 2000 |
| 1200 | 100 x 35 | 300 - 1000 | 1800 - 2500 | 190 | 2000 |
Standard Features
- Spring loaded self-balancing head.
- Safety Net Frame
- Adjustable Height – Clear Height 1200-1900mm
- Adjustable Fork Widths
- Convenient Hand Holds
- Painted bright yellow for safety
Operation
- Operate overhead crane / HIAB into position directly over the crane forks.
- Place the crane/HIAB hook onto the lifting eye of the attachment.
- Slacken the thumbscrews to position the forks at the widest possible distance apart to suit the pallet.
- Retighten thumb screws onto rail ensuring that they are adequately tightened and secure.
- With the pallet forks slightly raised, manually re-position the Pallet Forks to enter the pallet with the handles provided on the rear of the frame.
- Operate overhead crane / HIAB to enter the forks fully into the pallet.
- Once fully inserted into the load, place the safety strap around the load & secure.
- Lift the pallet clear of the ground and slide restraint net underneath. Attach to the six net hoops on the frame. Always use a restraint net when lifting overhead.
- When positioned correctly & secured, the load is ready for movement.
