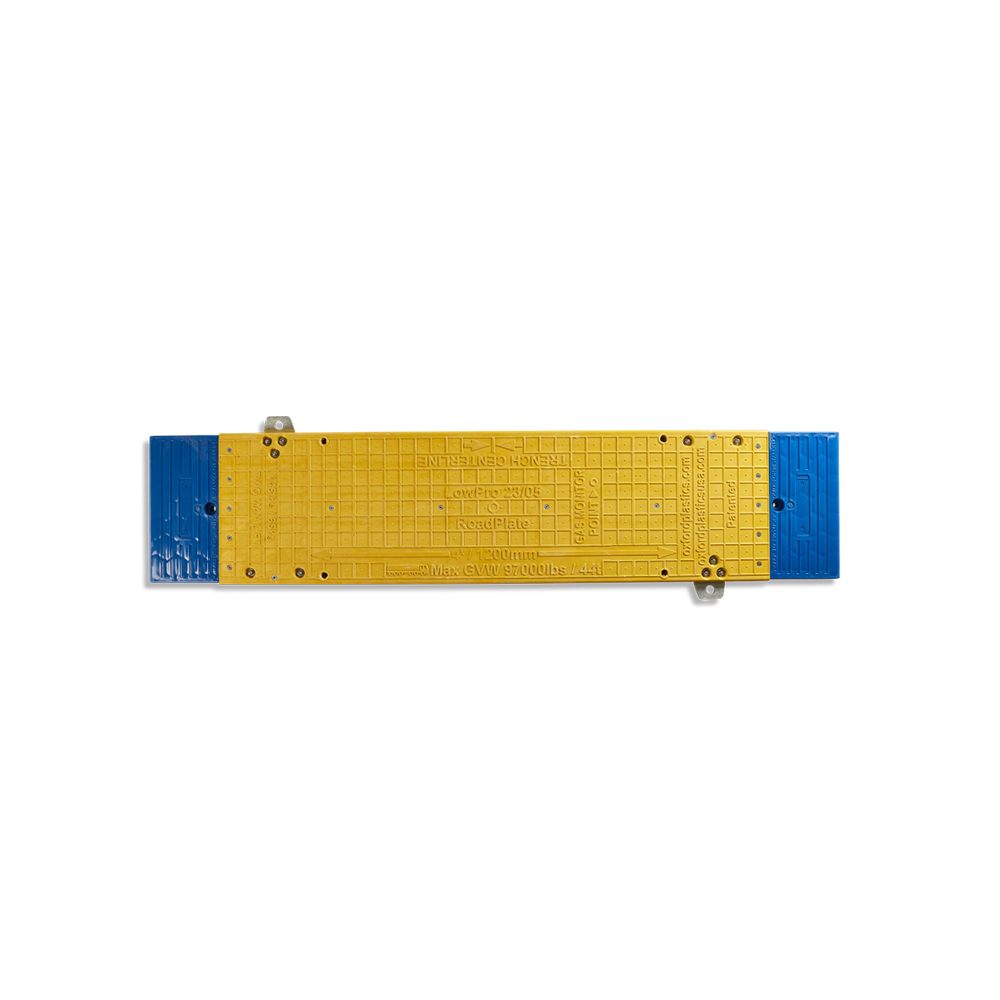

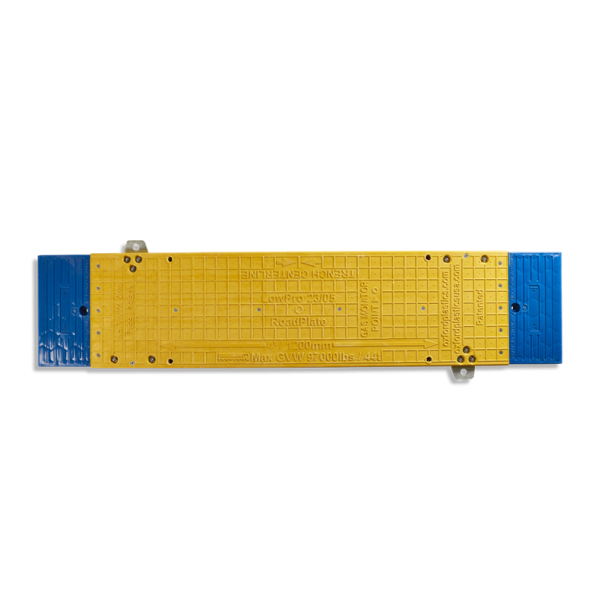

LowPro 23/05 Road Plate
LowPro 23/05 Road Plate System used as a composite lightweight alternative to our steel Road Plates.
A modular system of singular linking units which can withstand vehicles up to 44 tonnes over a 1200mm trench.
Compliant to BS7976-3:2002+A1:2013 performance standards.
Features:
- Cost-effective: lightweight and easy to handle making these road plates easily installed. Prevents the need for a crane or other expensive lifting machinery to transport.
- Corrosion-resistant: not susceptible to rust or corrosion making them ideal for use in environments where moisture or chemicals are present.
- Durability: designed to withstand heavy loads and repeated use without cracking or breaking to provide long-lasting performance.
- Eco-friendly: reduces carbon emissions with up to 79% reduction in carbon emissions compared to using traditional steel road plates.
- Safety: 65kg units are light which reduces the risk of injury to hands and fingers.
- Strong: supports 44 tonne vehicles over an excavation.
- Flexible: units can be easily linked together to cover any length of trench.
- Repairable: spare parts are available to extend the lifespan of your plastic road plate.
Specifications:
|
Inner |
Outer |
Stillage |
Easilift Handles |
---|---|---|---|---|
Width | 500mm | 700mm | 1613mm | 457mm |
Length | 2300mm | 2300mm | 1779mm | 925mm |
Height | 85mm | 85mm | 908mm | 196mm |
Weight | 65kg | 27kg | 190kg | 10kg |
Quantity/Pallet | 16 | 10 | 1 | 20 |
