Mesh Fence Feet Locking System
Frequently Bought Together

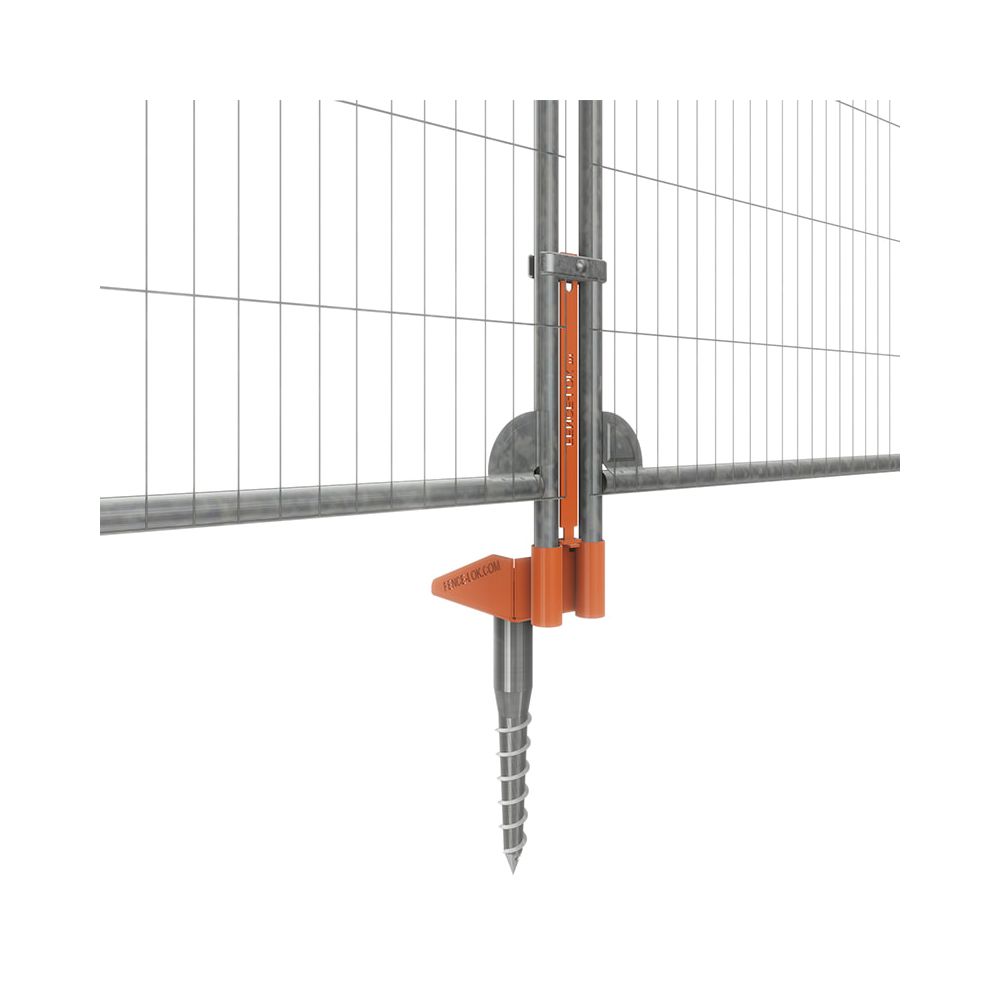

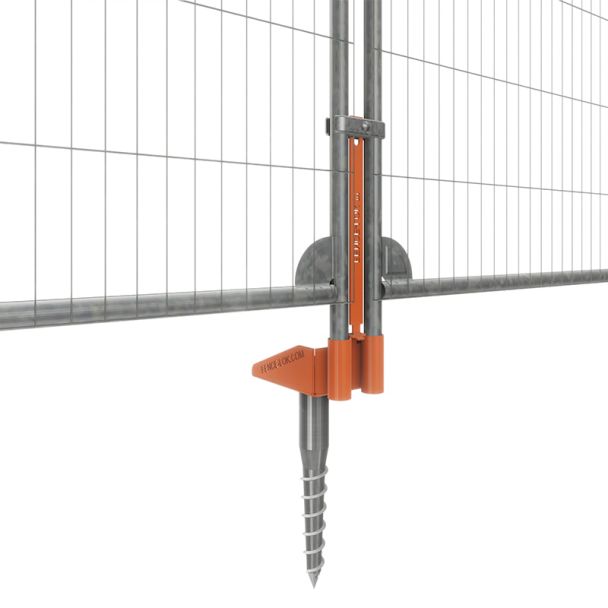

A secure fence locking system located at the feet of mesh fence panels. Versatile the locking system can be used on various surfaces and is designed to work effecitively on Soil, Concrete & Asphalt. Removable & Reusable the anti-trip locking system prevents accidents due to its compact design. Highly wind-resistant without stabilising support, the locking system can support additional bracing if required.
Locking System includes Fence Bracket, Locking Strap and a fixing option. Available in 3 fixing options: Soil, Concrete & Asphalt.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery

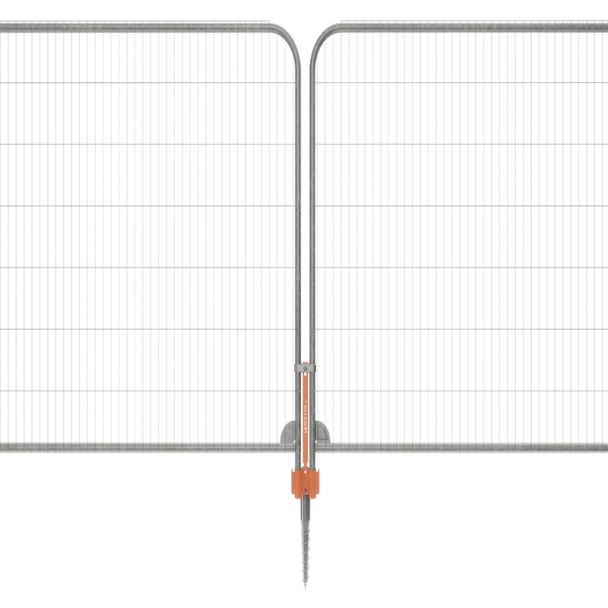

A highly versatile locking system that holds down open mesh fence panels, this fence locking system works on various surfaces e.g. soil, concrete & asphalt in order to stabilise and secure mesh panels on various sites e.g. construction, outdoor events etc. Compact in design, the fence locking system prevents falls and trips and sits just under the fence panel out of pedestrians' way. Despite its compact design, the locking system is wind-resistant, withstanding harsh wind currents. Additional stabilising support can be added if required.
Easy to install and remove the reusable system is environmentally friendly and has minimal impact on the environment as animals cannot nest. Once installed the fence is locked into position and cannot be removed by pedestrians. Due to its lightweight design, the locking system can be easily transported to and from sites.
Product Features:
- Compact & lightweight fence locking system
- Easy to install, remove and reuse
- Anti-trip due to its compact size
- Wind resistant (additional bracing can be added to the system if required)
Kit Includes:
- Fence Bracket
- Locking Strap
- Fixing Option - Soil, Concrete & Asphalt
Fixings
Soil Fixing: 1x Flanged Ground Screw - Hot dipped Galvanised Ground Screw
Concrete Fixing: 2x M12 Concrete Screws - High-performance concrete screw for easy installation

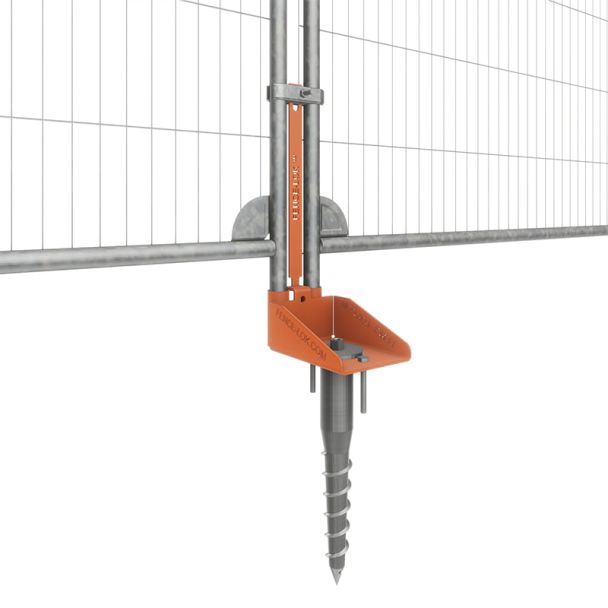

Asphalt Fixing: 2x M12 Asphalt Anchors - Metal anchor bolt with internal thread. Combined with chemical anchor resin for high durability
Product Specification
| Product | Surface Finish | Weight | Dimensions |
| Open Mesh Bracket | Powder Coated | 4.5KG | 290mm x 180mm x 120mm |

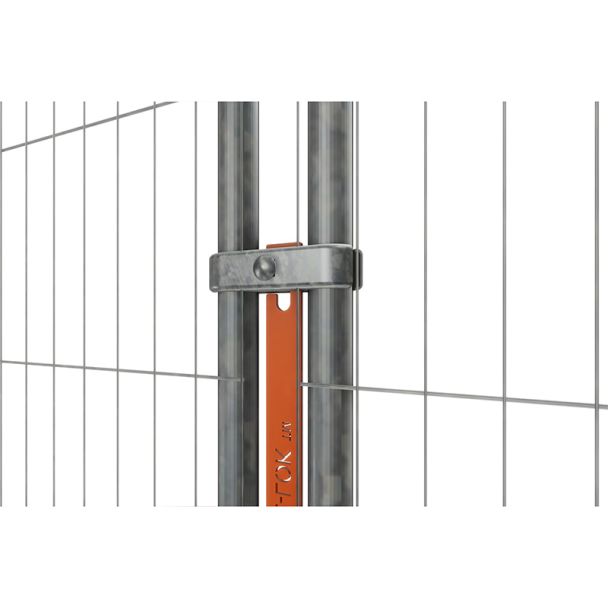

| Locking Strap | Powder Coated | 0.5KG | 35mm x 460mm x 5mm |
| Flanged Ground Screw (Soil) | Hot Dip Galvanised | 3KG | 530mm x 150mm x 68mm |
| Concrete Screw | Zinc Plated | 0.1KG | M12 |
| Asphalt Anchor | Zinc Plated | 0.1KG | M12 |
HERMEQ stock a wide-range of Accessories, Temporary Fencing, Mesh Fencing & Permanent Fencing conforming to all required safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via phone 01-8063798, email sales@hermeq.ie or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
