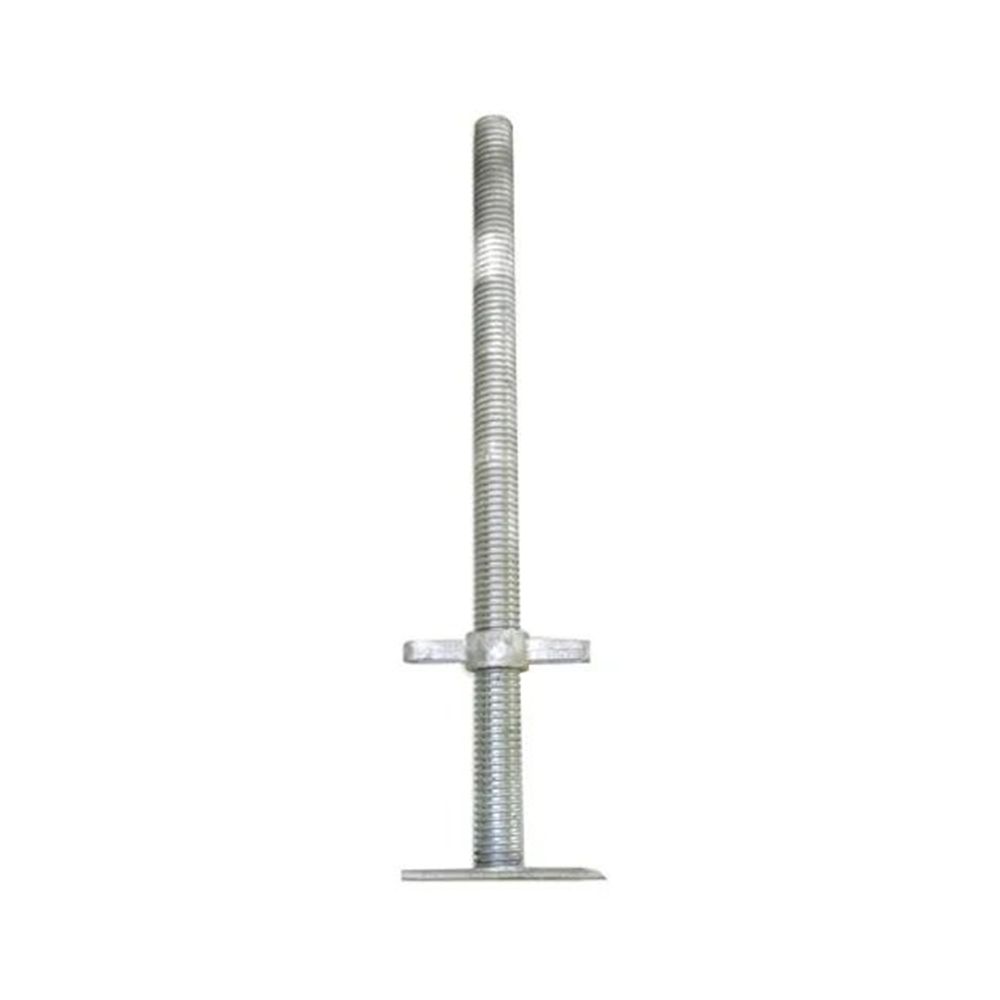

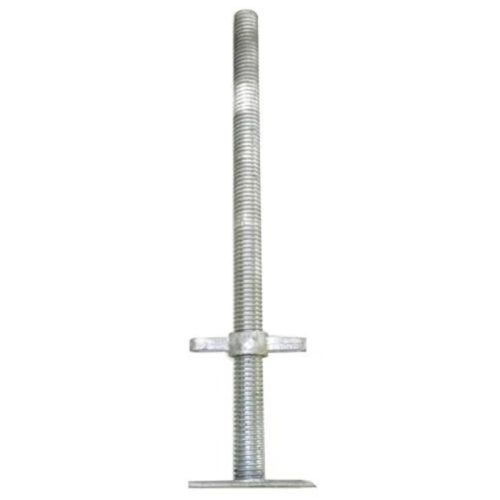

Base Jack - 4 Tonnes
Frequently Bought Together
Economy Base Jack is a high quality cost effective alternative to traditional levelling solutions for scaffolding.
38.1mm x 4.0mm x 650mm Overall (500mm Adjustment) & 150 x 150 x 5mm Base Plate.
The Economy Base Jacks are compatible with all types of System Scaffolding. They are manufactured using a roll threading process which ensures the maximum safe working load of 4 tonnes is comfortably achieved.
Independent Test Certificates are available upon request.
All SCP Jacks are manufactured in accordance with our ISO 9001:2000 quality system accreditation.
Product Specification
| Safe Working Load | 4000kg (concentric loading). Safety factor 3:1. |
| Thread | 4TPI Acme BS4360/50C |
| Base Plate | 150 x 150 x 5mm to BS4360/43A. |
| Weight | 3.4KG |
| Finish | Bright Zinc Plated |
Note: Eco Base Jacks are independently tested and comply with Metal Scaffolding Standards BS1139 and EN74.
