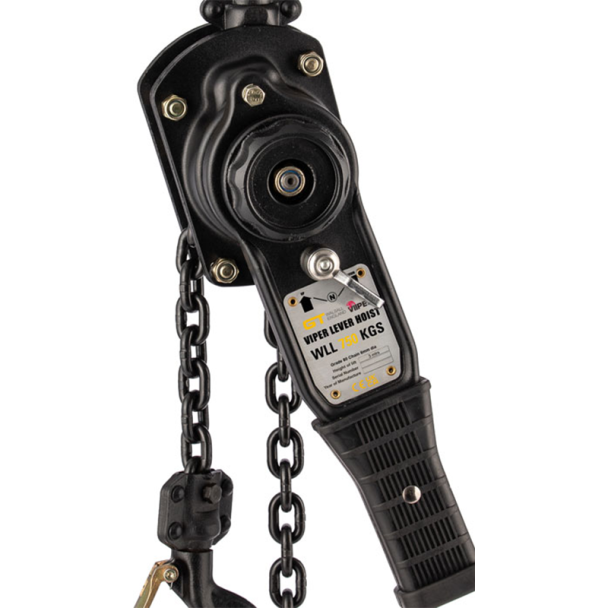

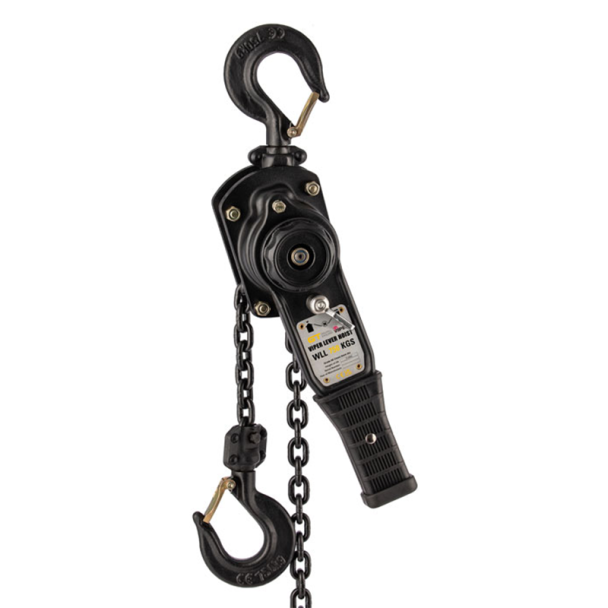

Ratchet Lever Hoist

main product photo
SKU
HL800490

Ratchet Lever Hoist (also known as a Lever Chain Hoist or Ratchet Lever Block) is a manual lifting device used for raising, lowering and pulling loads in various industrial and construction applications.

Ratchet Lever Hoists utilise a ratcheting mechanism and a lever for manual operation.

We supply sizes up to 3m long and can withstand loads up to 9 tonnes.

As low as €87.24 €107.31
In stock

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.



Used for various lifting and pulling applications in construction, manufacturing, maintenance and other industries.

Ratchet Lever Hoists are compact and lightweight making them easy to transport and suitable for use in confined spaces.

Due to their compact design, Ratchet Lever Hoists are well-suited for use in confined spaces where larger lifting equipment may not be practical.

Typically operated as manual lifting devices and have a lever that the operator uses to apply force and lift or lower the load.

The hoist employs a ratchet and pawl system that allows the operator to lift or lower the load incrementally by applying force on the lever. The ratchet mechanism ensures that the load remains in place when the lever is not in use.

The Load Chain is made of high-strength steel and is used to support and lift the load. It is often equipped with a safety latch to securely attach to the load.

The Lever is manually operated by the user to engage the ratchet mechanism and lift or lower the load.

Regular lubrication of moving parts is essential to maintain the hoist's functionality and extend its service life.



Specifications:

  • Manufactured with high-performance materials for extra durability.
  • Matt black finish.
  • Meets W.L.L. performance requirements of BS EN 13157.
  • Minimum break load 4 times the W.L.L.
  • Grade 80 load chain meets the WLL performance requirements of BS EN 818-7.
  • Electro galvanised calibrated hand chain.
  • Sealed bearings in each unit ensure extra protection and allow complete repair flexibility.
  • Top and bottom hooks with heavy-duty cast catches.
