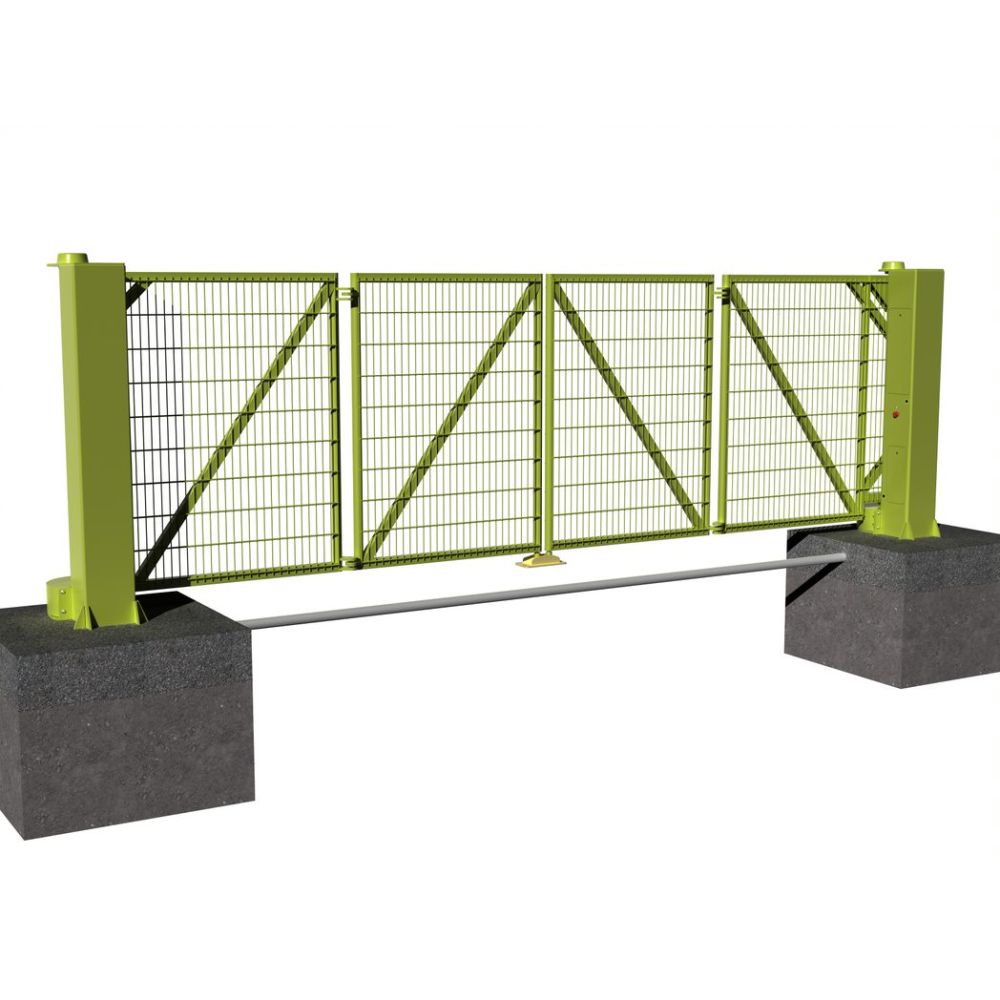

Auto Bi-Folding Gate

main product photo
SKU
PK396281
These Bi-Folding Speed Gates are designed to operate in areas where the opening space is limited. The gates can open approximately 40% less than normal gates due to its ability to fold within itself and open at more than twice the speed of traditional swinging gates of a comparable size. Easy to install and complied with BS/EN 12453.
As low as €10,725.00 €13,191.75
In stock

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.



These Bi-Folding Speed Gates are built to last. Easy and fast to install these folding gates come ready assembled and simply need to be plugged into the mains to access control. Like the names states these electric Gates can fold within itself saving up to 40% of space in between and open and close quicker than a traditional gate.

A great first choice for busy construction site exits and entrances due to their swift operating speed these gates ensure traffic is not congested. The gates are fitted with several safety precaution devices such as the dual height photocells which activate on opening and closing the gates and category 3 safety edges that protect users from harm.

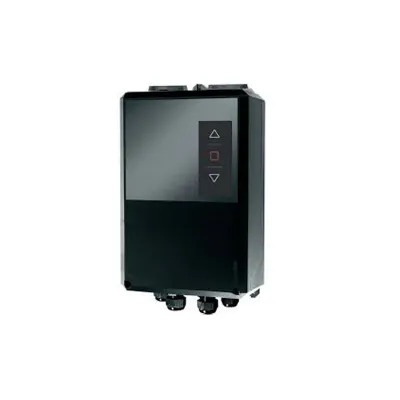

The gate also runs an intelligent Feig Control Panel which allows the gate to run smoothly and safely when unmanned. The Feig control panel commands the gate using smart technology to instruct it on when to open and close. This ensures a safe and smooth operation each time as the gates are supplied with a Strong Integrated 3 phase motor and gearbox which produces smooth and reliable opening and closing motions.

Complies with BS/EN 12453.

Product Features:

  • Easy to install and use
  • Low maintenance
  • Fast operation
  • 100% Access control compatible
  • Built to last
  • Fire Alarm input pre-configured

Product Specifications

Gate SpeeedPower RequirementsMaximum Span DimensionsMaximum Height DimensionsMaterial ConstructionWeight
3 to 8 secondsSingle Phase 240v 50Hz 10 Amps10m Clear Drive Through Opening

2.4 Metres (Max Width 10m)

3.0 Metres (Max Width 6m)

Steel Construction - Gate Leaf and Main Tower

All Components are Galvanised OR Zinc Plated Steel

595Kg Approx (dependant upon gates size and infill type)

HERMEQ stock a wide-range of Entrace Barriers, Traffic Management, Permanent Fencing & Temporary Fencing conforming to all required safety specifications and regulations.

Need any help? Contact HERMEQ Today.

Contact our team via phone 01-8063798, email sales@hermeq.ie or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
