Fence Clip (Coupler)
SKU A0006
Quickest Available Delivery: 5 Days
Fencing Couplers, also known as Fencing Clips, secure portable Temporary Fencing Panels together. To make sure that your temporary fencing is installed safely and remains secure, we suggest using two couplers (double clip) for connecting the fencing panels together, although some opt for only one clip per connection. These couplers also measure 175mm long and 50mm wide and are manufactured using pressed 1.5mm galvanised steel.
Details

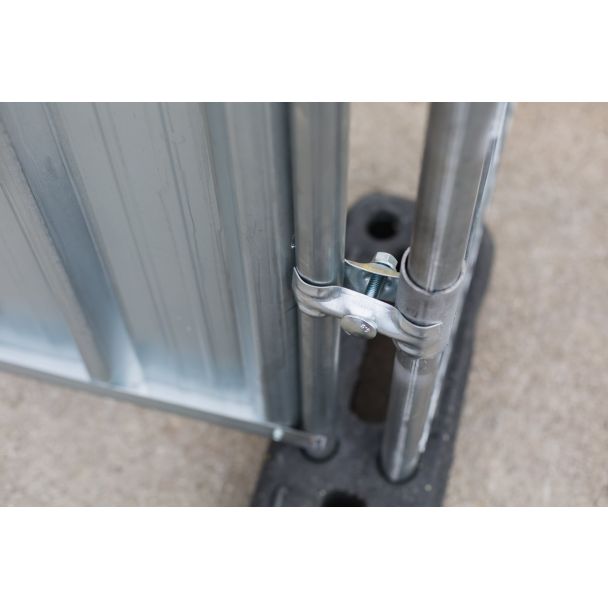

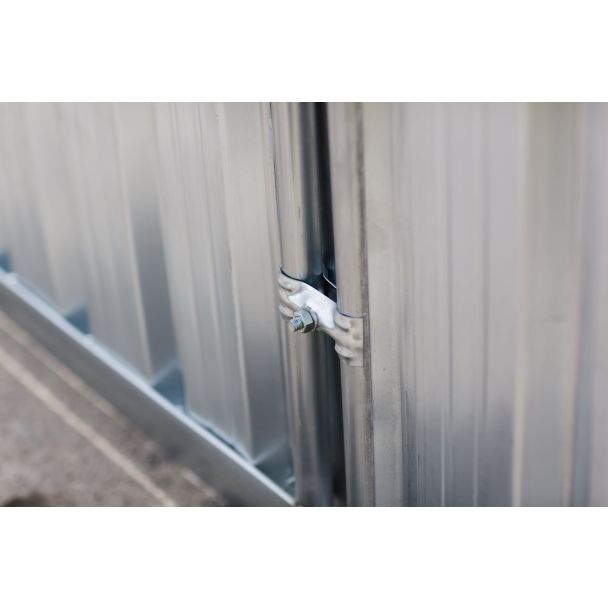

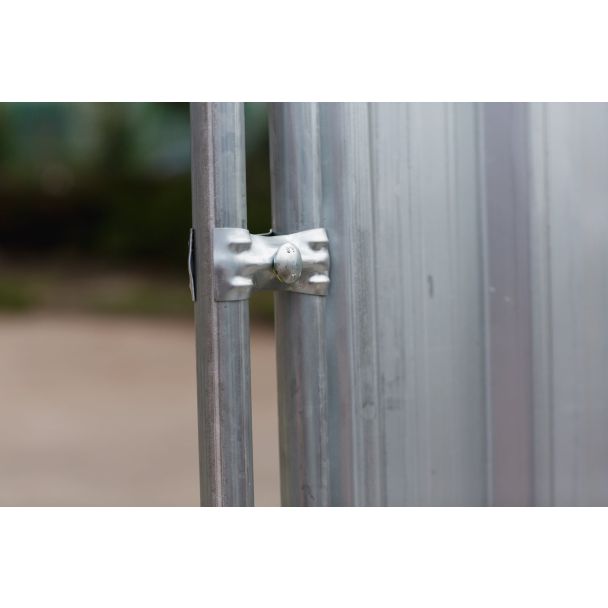

Fencing couplers, also known as fencing clips, connect temporary fencing, both Mesh Security Fence Panels and Solid Steel Hoarding Panels, together. The pressed halves are then fitted around the outer tubular frame of the fence panel and fastened using a nut and bolt slotted through the centre of the two coupler halves through a 14mm square hole.
Product Specifications
Length: 175mm
Width: 50mm
Arches Pressed Depth: 16mm
- M12 X 70 Half Threaded Cup Square Bolt (Bright Galvanised Finish)
- Washer Included
- Hex Nut Included
HERMEQ stocks a wide range of Accessories, Temporary Fencing, Mesh Fencing & Permanent Fencing conforming to all required safety specifications and regulations.
Specifications
1.5mm thick pressed steel (arches for added rigidity / strength)
Body halves (2 per coupler) secured with a M12 X 70 half threaded cup square bolt, washer and standard Hex nut.
Finish: Galvanised to BS EN 10244-2 standard
