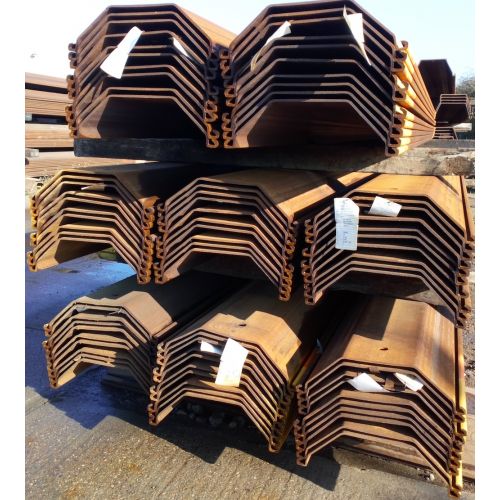

U Piles
Frequently Bought Together

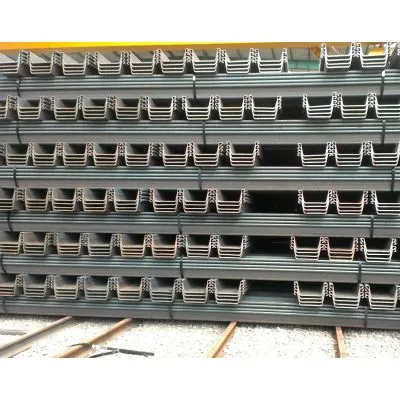

A Trench U-Pile is a specialised form of retaining wall system made up of interlocking steel sheet piles that are installed in a trench. This system is often used in construction projects to provide support and stability to the soil in areas such as deep excavations, riverbanks, or along highways. Millions of tons of U-shaped sheet piles have been used all over the world for all kinds of structures for more than 90 years.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
The advantages of U-shaped piles are multiple:
- wide range of sections forming several series with various geometrical characteristics, enabling the choice of technically and economically optimised sections for each specific project
- combination of great wave depth and high flange thickness leading to excellent statical properties
- symmetrical form of single elements resulting in great aptitude for re-use
- possibility of assembling and fixing piles into pairs at the mill providing better installation quality and performance
| Profile | B (mm) | H (mm) | T (mm) | S (mm) | Weight (kg/m) | Weight (kg/m2) | Moment of Inertiea (cm4/m) |
Elastic Section Modulus (cm2/m) |
Plastic Setion Modulus (cm3/m) |
| GU 7N | 600 | 310 | 6.5 | 6.4 | 44.1 | 73.5 | 10450 | 675 | 825 |
| GU 8N | 600 | 312 | 7.5 | 7.1 | 48.5 | 80.9 | 12010 | 770 | 935 |
| GU 13N | 600 | 418 | 9.0 | 7.4 | 59.9 | 99.8 | 26590 | 127,750 | 1535 |
| GU 16N | 600 | 430 | 10.2 | 8.4 | 72.6 | 121.0 | 35950 | 1670 | 1988 |
| GU 18N | 600 | 430 | 11.2 | 9.0 | 76.9 | 128.2 | 38650 | 1800 | 2134 |
| GU 21N | 600 | 450 | 11.1 | 9.0 | 81.9 | 136.5 | 46380 | 2060 | 2422 |
| GU 23N | 600 | 450 | 13.1 | 10.0 | 90.4 | 150.7 | 52510 | 2335 | 2735 |
