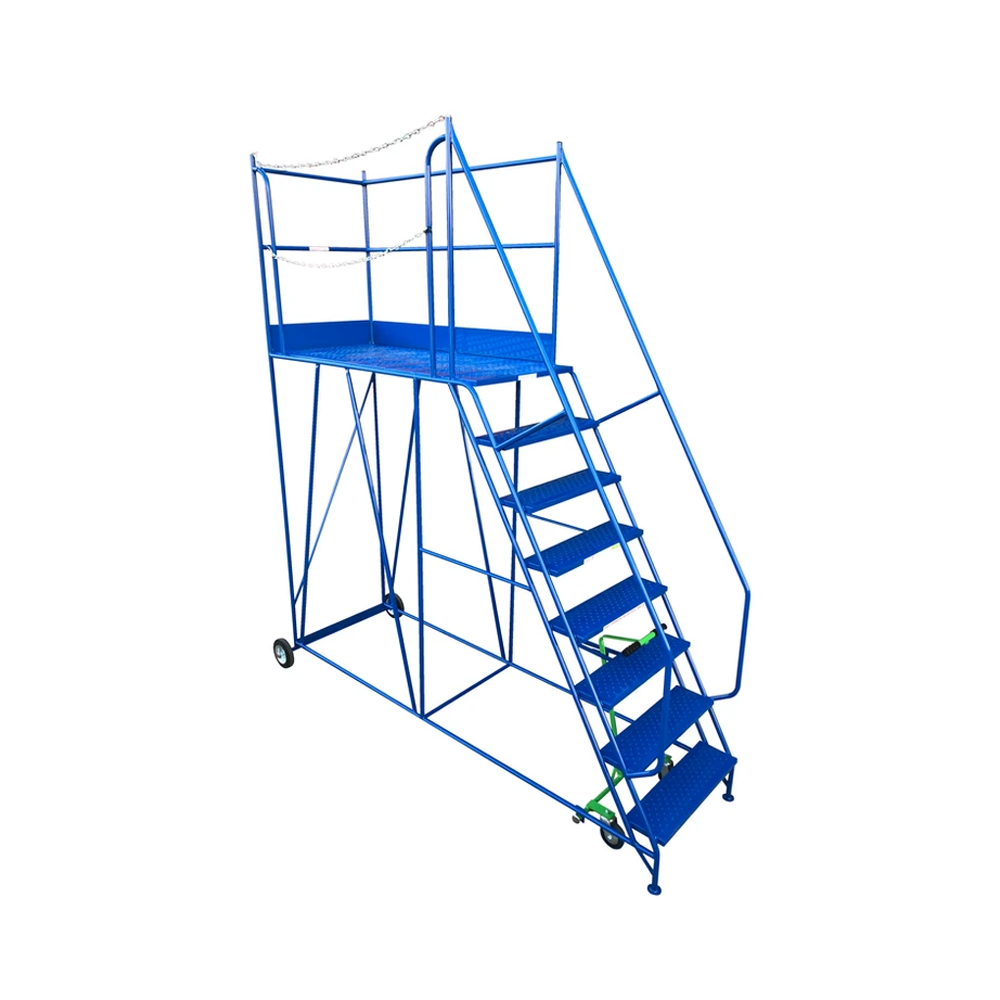

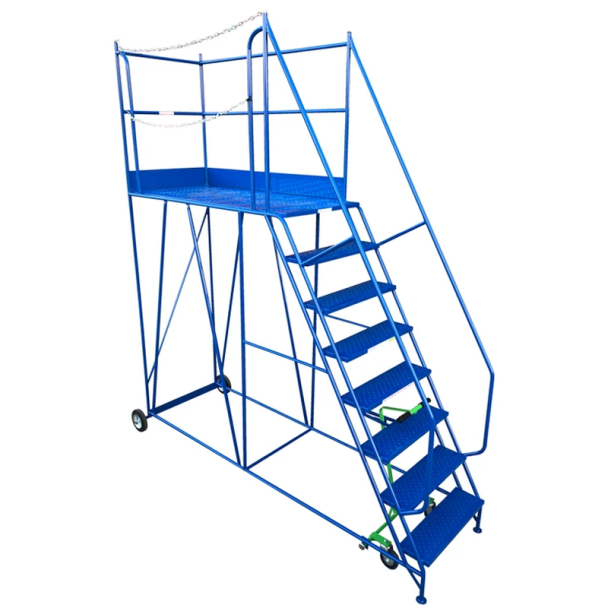

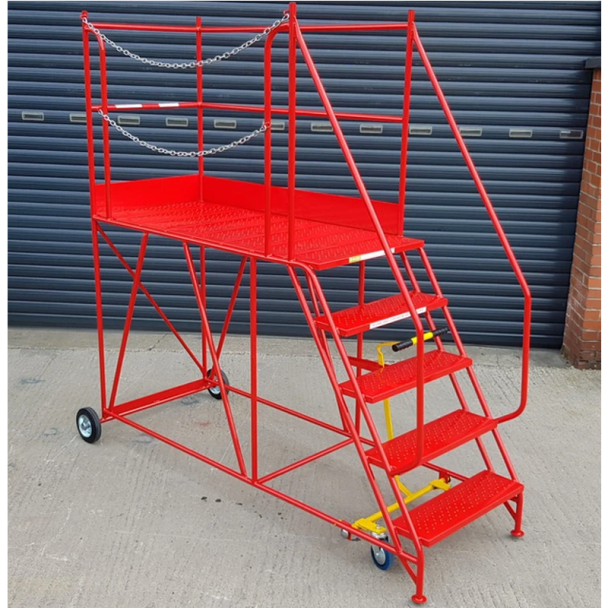

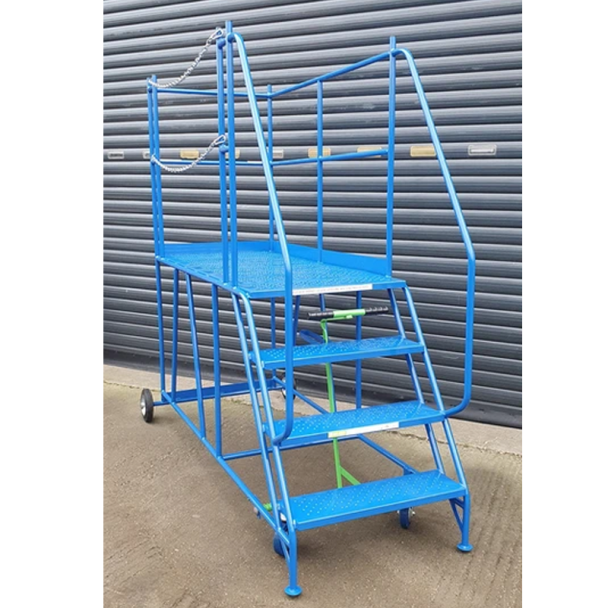

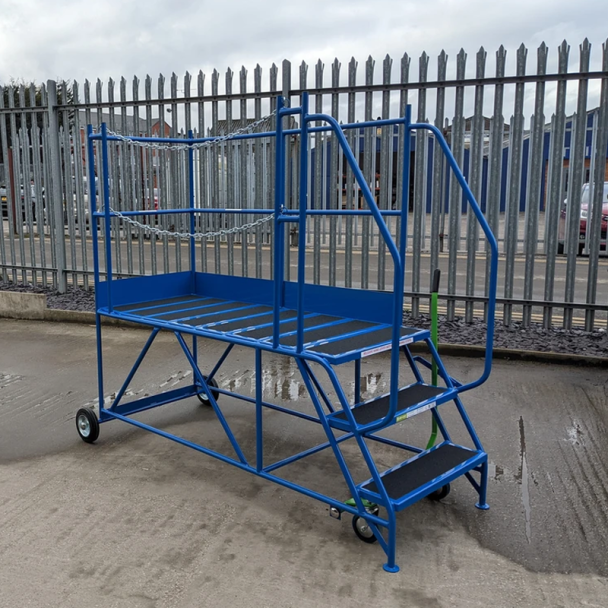

Mobile Access Platform Treads

SKU
LA319442

A heavy duty mobile access platform with strengthened treads. Manufactured with an extra-large platform with a side exit these treads are commonly used to unload and load vehicles due to its 500KG working load, an industrial standard. Available fully welded and ready to use these treads are fully customisable.

Available in colours Blue, Green, Red, Grey, Yellow and Orange & 2 tread types: Punched Metal, PVC Covered | Platform height: 500 – 2000mm | Tread Size: 700 x 200mm | Platform Size: 700 x 1600mm

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

With a large platform that allows users to comfortably operate and work, these mobile access platform treads are popular with customers who load and unload vehicles e.g. transportation and logistics industry. Boasting a 1600 x 700mm platform size and a 500KG safe working load, these treads give ample room for users to put items on the platform, reducing strain on workers and ensuring goods are kept safe. Available fully welded and ready to use right away.

Product Features:

  • Safe Working Load of 500KG
  • Fully welded and ready to use right away
  • Platform height between 500-2000mm
  • Ideal for vehicles that load/unload
  • Extra large platform – 1600 x 700mm
  • Side exit with chains
  • Fully customisable
  • Available in various treads, tread types and colours

Product Specifications:

Platform Size: 700 x 1600mm | Tread Size: 700 x 200mm

TreadsWorking Platform Height (mm)Working Height (mm)Overall Height (mm)Overall Width (mm)Overall Length (mm)Weight (KG)Brake Type
2
500
1500 - 2250
1500
1000
1805
65
Side brake
3
750
1750 - 2500
1750
1000
1960
76
Side brake
4
1000
2000 - 2750
2000
1000
2110
78
Central brake
5
1250
2250 - 3000
2250
1000
2470
89
Central brake
6
1500
2500 - 3250
2500
1000
2560
95
Central brake
7
1750
2750 - 3500
2750
1000
2650
108
Central brake
8
2000
3000 - 3750
3000
1000
2775
111
Central brake

HERMEQ stock a wide-range of Ladders, Scaffolding Equipment, Handling & Lifting Equipment & Lifting Equipment conforming to all required safety specifications and regulations.
