Urban Sign System - Base

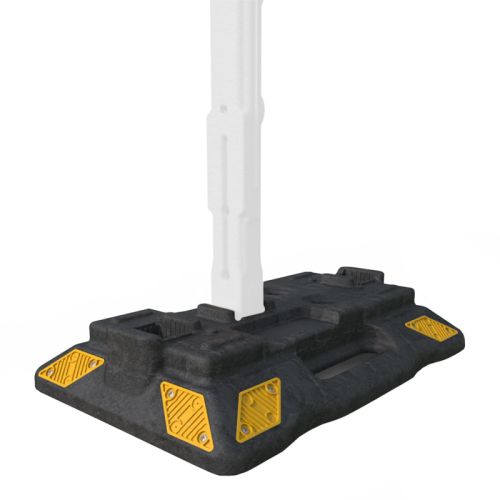

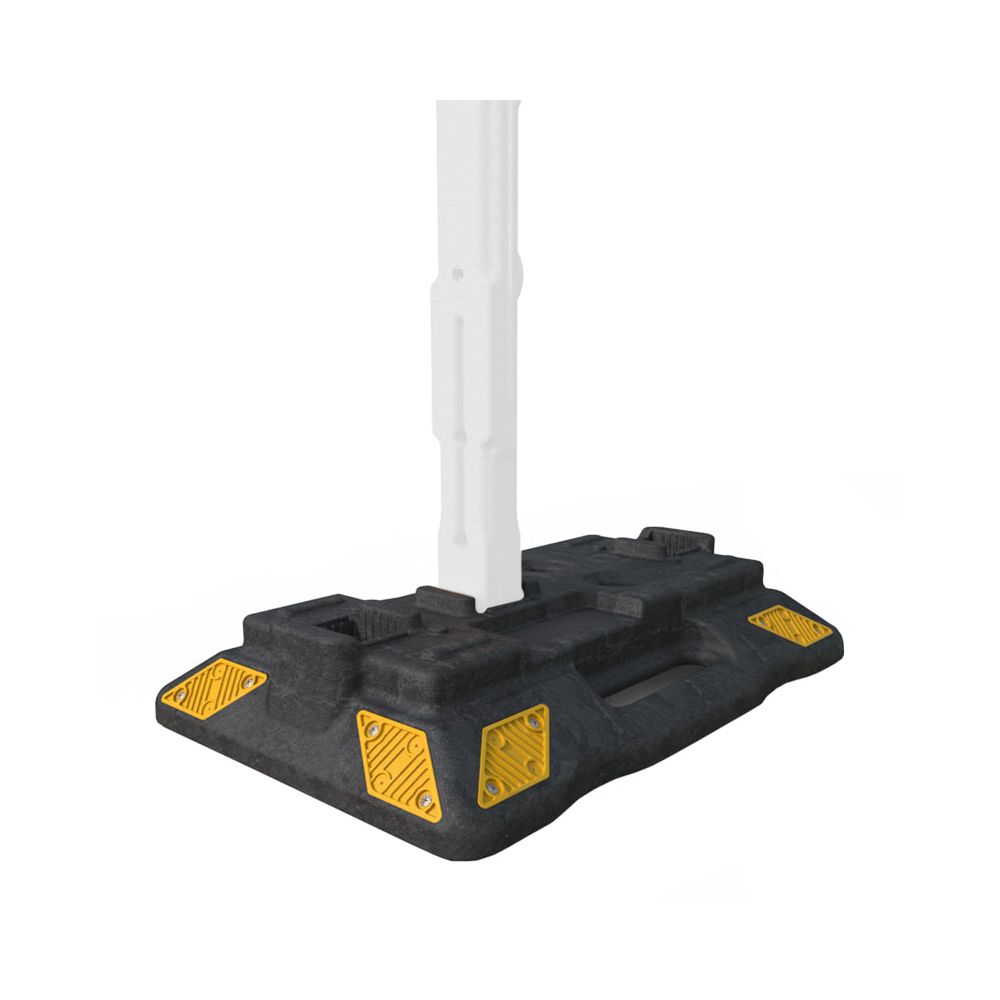

Urban Sign Post Base – Durable, Stable & Recyclable Signage Solution

The Urban Sign Post Base is a heavy-duty, portable base designed to securely hold road signs, traffic management signage, and event wayfinding signs. Manufactured from 100% recycled plastic, this environmentally friendly solution provides superior stability, durability, and ease of deployment, making it ideal for use in urban environments, construction sites, and temporary traffic control setups.

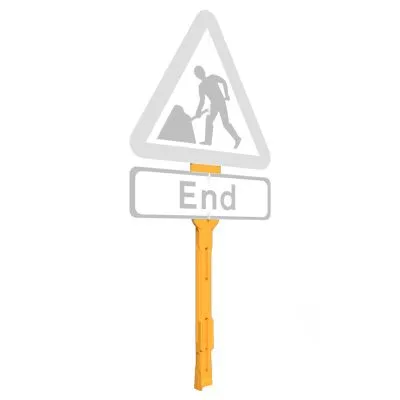

The design of the Urban Sign Base allows for the installation of existing 300mm and 450mm hole centre sign faces when utilising two Urban Sign Posts. Only one post is required when the hole centres are central to the sign face. Larger signs will require two posts.

As standard, the Sign Feet/Sign Base come in black with yellow hi-vis fixings to ensure they stand out in the dark and do not present a trip hazard. The Posts come in yellow, however, we can change the colour to suit your corporate identity or specific requirements for orders over 200 units.

The Urban Sign System is also the most stable sign frame on the market and takes away any requirements for weighting the sign frame with messy sandbags. This non-metallic and non-conductive solution is lighter than steel, reducing the load weight in your vehicle and eliminating scrap value. The Urban Sign Post can also be reinforced by adding more than one base. The bases will only stack one way, which ensures all holes self-align, this then allows the use of multiple bases to create higher stability.  One post can be combined with up to three stacked bases.

Key Features & Benefits

✔ Heavy-Duty Stability - Designed to hold signs securely in place, even in high-traffic and windy conditions.

✔ Durable Recycled Plastic Construction - Weather-resistant, impact-resistant, and eco-friendly, made from 100% recycled PVC.

✔ Easy to Transport & Deploy - The compact, stackable design allows for quick setup, increased stability, and efficient storage, removing the need for sandbags.

✔ Secure Signage Fixing - Compatible with a range of sign post sizes, providing versatile applications for traffic and event signage.

✔ Non-Slip Base Design - Ensures maximum grip on various surfaces, reducing the risk of movement or tipping.

✔ High-Visibility - Hi-vis plates reduce trip risks even in low light conditions.

✔ Compliant with Safety Regulations - Meets industry standards for road safety and traffic management.

✔ Custom Branding - The base & post can be branded with customer logos and the post can be manufactured in corporate colours.

Ideal Applications

• Quick Temporary Road Signs - Essential for highways, construction sites, and roadside traffic control.
• Event & Crowd Management - Perfect for marathons, festivals, and sporting events.
• Retail & Commercial Areas - Creates clear, visible signage in pedestrian zones.
• Local Authorities & Councils - Used for public information, parking guidance, and urban planning.

Standards

• Conforms to requirements of BS 8442:2015
• Chapter 8 - The Traffic Signs Manual
• The Red Book 2013
• Traffic Signs Regulations & General Directions



Wind Resistance

The standard BS 8442:2015 requires all temporary traffic signs to withstand three different classes of wind speed with the use of a ballast.

Class A: 26.3 m/s (58mph)
Class B: 17.6 m/s (39mph)
Class C: 8.7m/s (19mph)

The Urban Sign System has been tested under strict conditions at the Full Scale Wind Tunnel at Mira to determine the wind speeds it can withstand. Below are the results for the standard sign face range, these results are a guide to the recommended ballast weight for each Wind Class

	750 Triangle	750 Circle	600 x 450	1050 x 450	1050 x 750
	1 Base	1 Base	1 Base	2 Bases	2 Bases
Class C	0kg	0kg	0kg	0kg	0kg
Class B	45kg	45kg	45kg	50kg	40kg
Class A	70kg	70kg	70kg	80kg	70kg



Why Choose HERMEQ Road Signs?

At HERMEQ, we specialise in high-quality road safety products designed for efficiency, durability, and ease of use. Whether you need temporary traffic barriers, pedestrian control solutions, or site safety equipment, our Urban Sign System is the perfect choice for safe and effective traffic management.

Need assistance? Contact us today for expert advice!

Fast Nationwide Delivery Available!



HERMEQ stocks a wide range of Traffic Signs, Traffic Management Equipment, Quick Fit Signs & Road Plates conforming to all required safety specifications and regulations.
