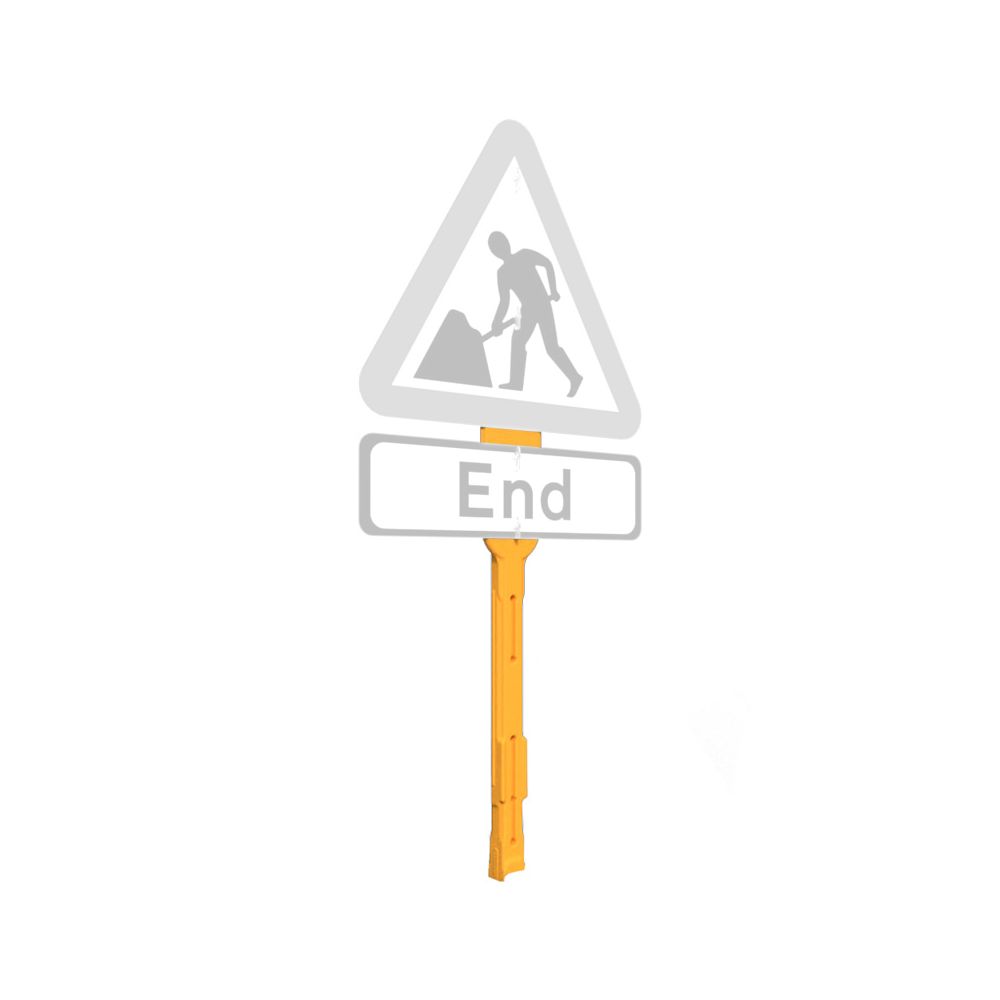

Urban Sign System - Post
The innovative Urban Sign System Post is a lightweight & durable alternative to steel mini quick-fit systems. They make for easy transportation and installation for traffic management & utility companies and come with anti-luce fixings, enabling you to secure sign faces directly to the signpost.Â
Bases can also be added below. Signs & Bases are sold separately.
Urban Sign System Post - Versatile, Durable & Eco-Friendly Signage Solution

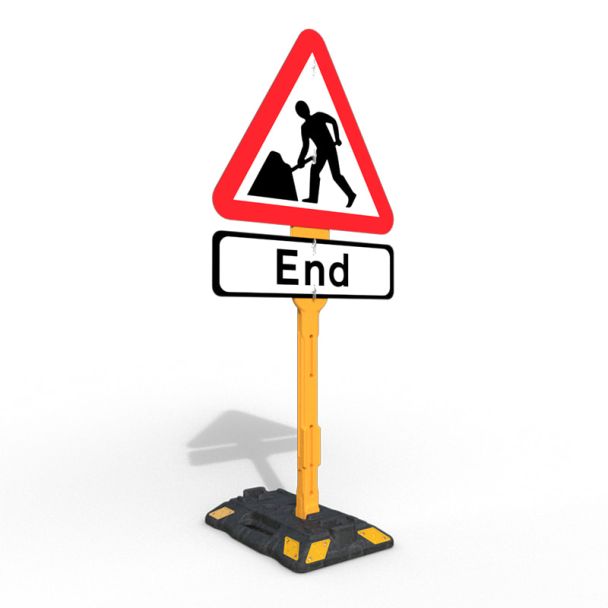

The Urban Sign System is a high-performance, portable signage solution designed for traffic management, pedestrian guidance, and event wayfinding. Made from 100% recycled PVC, this robust, non-slip base and interchangeable sign system offers exceptional stability, ease of transport, and quick deployment, making it ideal for urban environments, construction zones, and temporary road signage.
Â

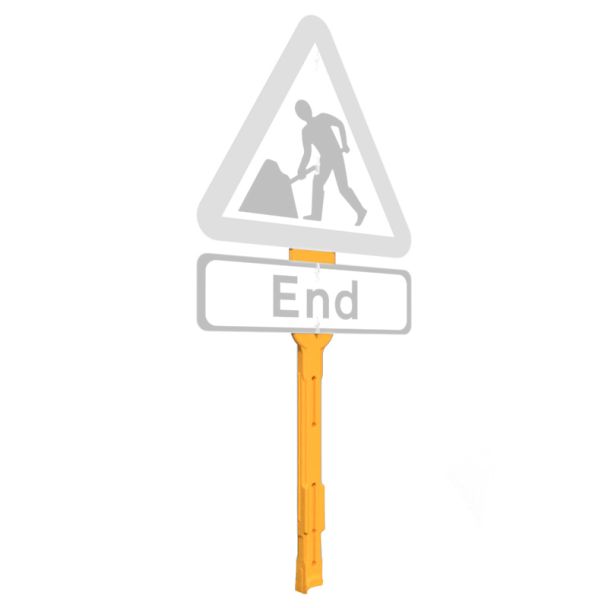

The design of the Urban Sign Base allows for the installation of existing 300mm and 450mm hole centre sign faces when utilising two Urban Sign Posts. Only one post is required when the hole centres are central to the sign face. Larger signs will require two posts.
Â

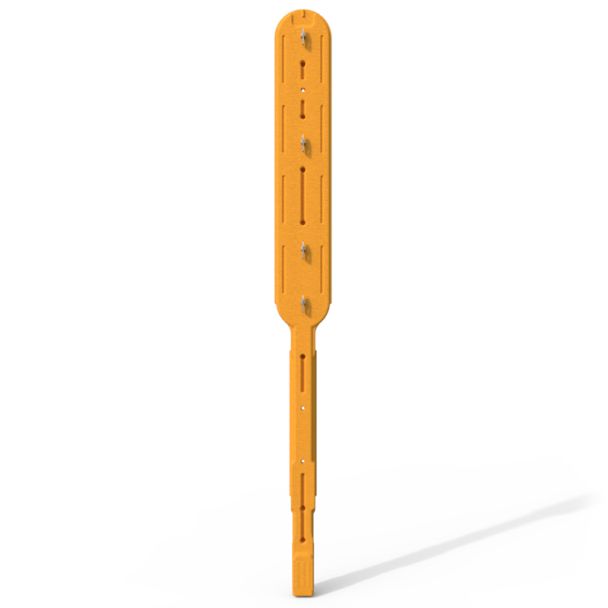

As standard, the Sign Feet/Sign Base come in black with yellow hi-vis fixings to ensure they stand out in the dark and do not present a trip hazard. The posts come in yellow, however we can change the colour to suit your corporate identity or specific requirements for orders over 200 units.
Â

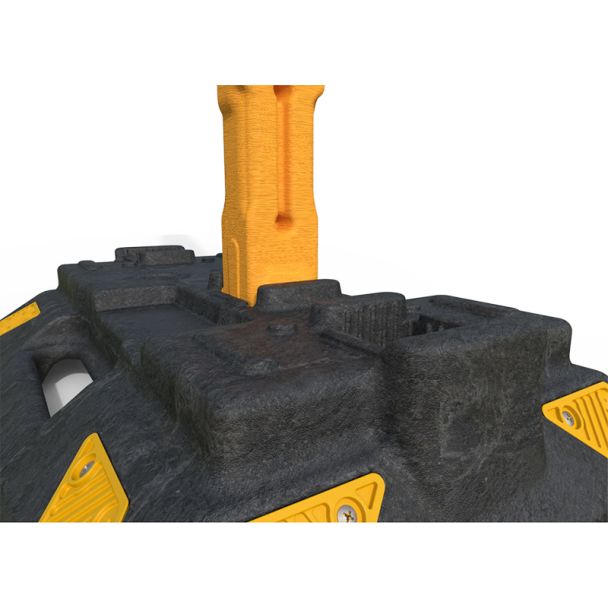

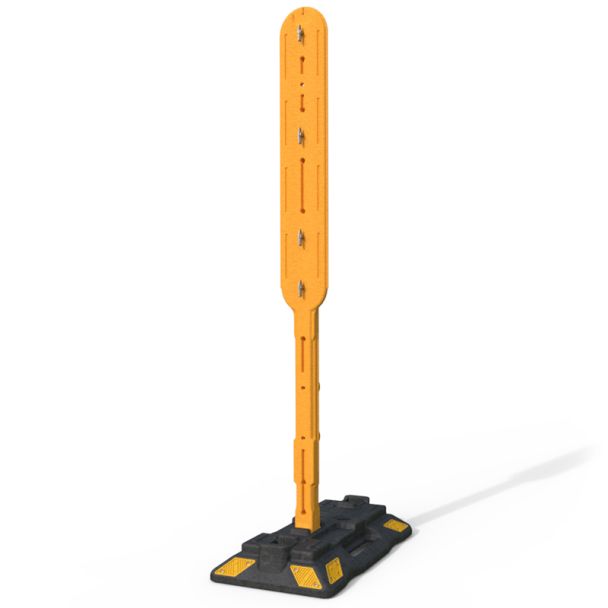

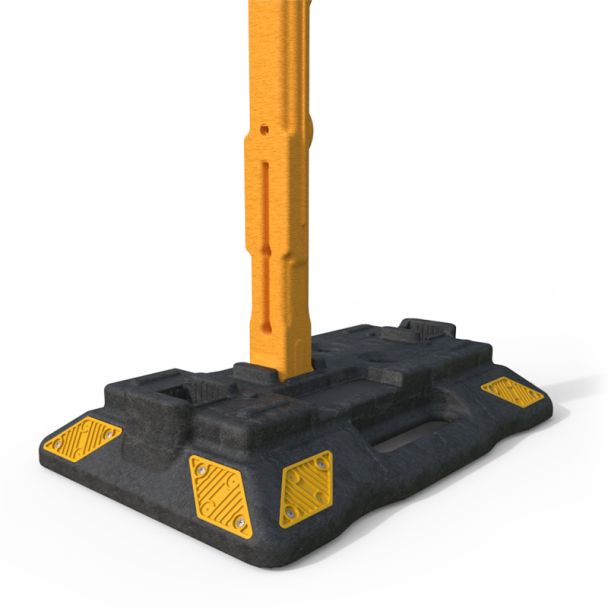

The Urban Sign System is also the most stable sign frame on the market and takes away any requirements for weighting the sign frame with messy sandbags. The Urban Sign Post can also be reinforced by adding more than one base. The bases will only stack one way, which ensures all holes self-align, this then allows the use of multiple bases to create higher stability. In total this post can be combined with up to three stacked bases.
Â
Key Features & Benefits
✔ Heavy-Duty Stability - Designed to hold signs securely in place, even in high-traffic and windy conditions.
✔ Durable Recycled Plastic Construction - Weather-resistant, impact-resistant, and eco-friendly, made from 100% recycled PVC.
✔ Easy to Transport & Deploy - The compact, stackable design allows for quick setup, increased stability, and efficient storage, removing the need for sandbags.
✔ Secure Signage Fixing - Compatible with a range of sign post sizes, providing versatile applications for traffic and event signage.
✔ Portable & Stackable Design - The compact base is easy to transport and store, allowing for efficient logistics and storage.
✔ Interchangeable Sign Faces - Easily swap out different signs as needed, providing versatility for multiple applications.
✔ Compliant with Safety Regulations - Meets industry standards for road safety and traffic management.

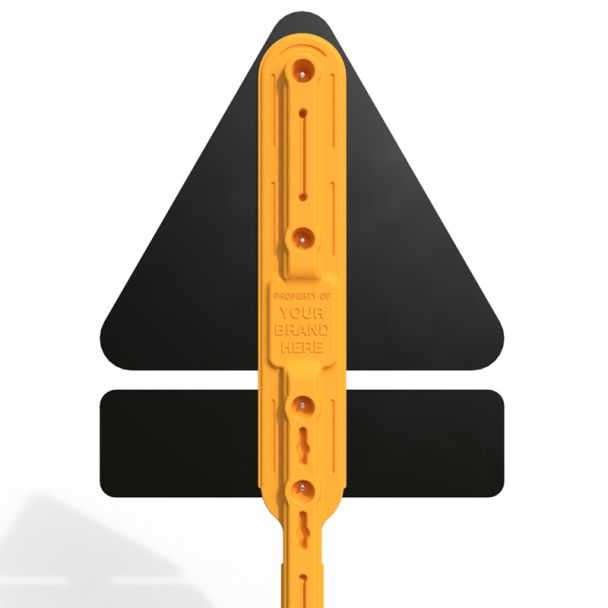

✔ Custom Branding - The base & post can be branded with customer logos and the post can be manufactured in corporate colours.Â
Â
Ideal Applications
- Quick Temporary Road Signs - Essential for highways, construction sites, and roadside traffic control.
- Event & Crowd Management - Perfect for marathons, festivals, and sporting events.
- Retail & Commercial Areas - Creates clear, visible signage in pedestrian zones.
- Local Authorities & Councils - Used for public information, parking guidance, and urban planning.
Â
Standards
- Conforms to requirements of BS 8442:2015
- Chapter 8 - The Traffic Signs Manual
- The Red Book 2013
- Traffic Signs Regulations & General Directions
Â
Wind Resistance
The standard BS 8442:2015 requires all temporary traffic signs to withstand three different classes of wind speed with the use of a ballast.
Class A: 26.3 m/s (58mph)
Class B: 17.6 m/s (39mph)
Class C: 8.7m/s (19mph)
The Urban Sign System has been tested under strict conditions at the Full Scale Wind Tunnel at Mira to determine the wind speeds it can withstand. Below are the results for the standard sign face range, these results are a guide to the recommended ballast weight for each Wind Class
 |  |
 |
 |
 |
 |

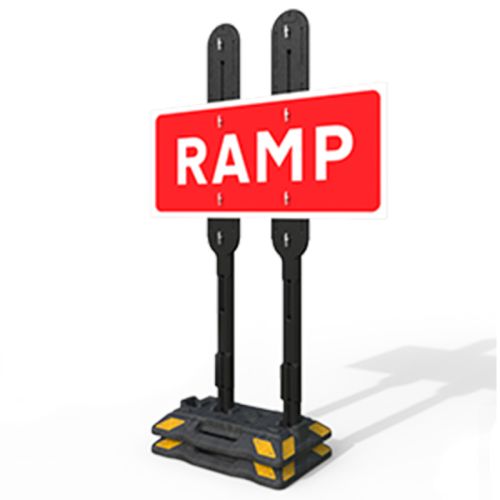

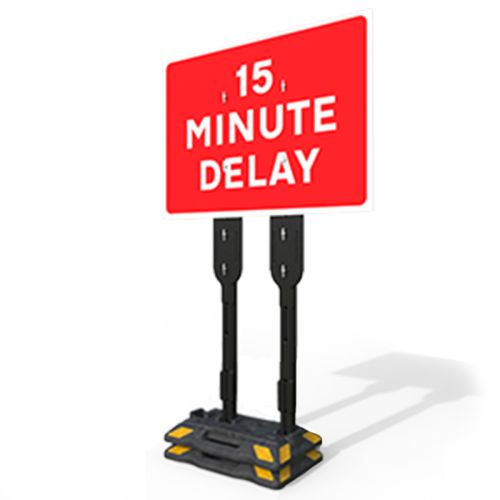

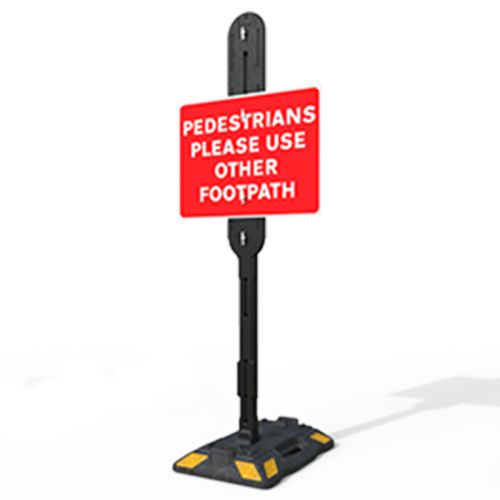

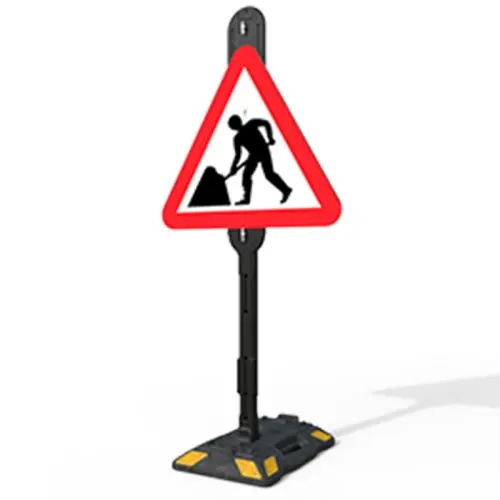

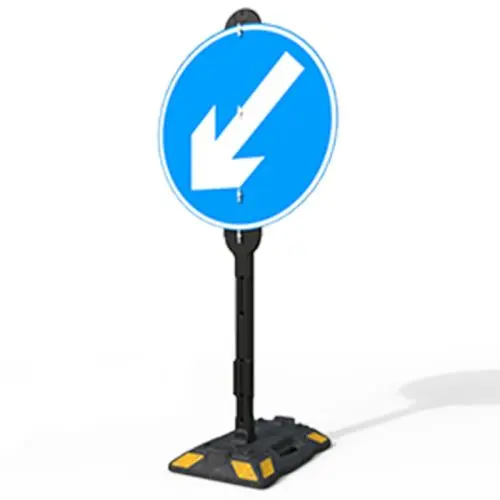

 | 750 Triangle | 750 Circle | 600 x 450 | 1050 x 450 | 1050 x 750 |
 | 1 Base | 1 Base | 1 Base | 2 Bases | 2 Bases |
Class C | 0kg | 0kg | 0kg | 0kg | 0kg |
Class B | 45kg | 45kg | 45kg | 50kg | 40kg |
Class A | 70kg | 70kg | 70kg | 80kg | 70kg |
Â
Why Choose HERMEQ Road Signs?
At HERMEQ, we specialise in high-quality road safety products designed for efficiency, durability, and ease of use. Whether you need temporary traffic barriers, pedestrian control solutions, or site safety equipment, our Urban Sign System is the perfect choice for safe and effective traffic management.
Need assistance? Contact us today for expert advice!
Fast Nationwide Delivery Available!
Â
HERMEQ stocks a wide range of Traffic Signs, Traffic Management Equipment, Quick Fit Signs & Road Plates conforming to all required safety specifications and regulations.
Â
Need any help? Contact HERMEQ Today.
Contact our team via phone 01-8063798, email sales@hermeq.ie or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
Height: 1660mm
Width:Â 162mm
Depth:Â 50mm
Weight: 1.5kg
Frequently Asked Questions (FAQs):
What types of signs can be used with the Urban Sign System?
The system is compatible with a wide range of standard traffic and pedestrian signs with holes, making it a versatile choice for various applications.
Â
How heavy is the Urban Sign Post?
The 1.5kg weighted PVC base provides stability while remaining portable, making it easy to handle, transport, and store.
Â
Can it be used in all weather conditions?
Yes! The durable plastic construction is weather-resistant, ensuring long-lasting performance in rain, snow, or extreme heat.
Â
Is this sign post base environmentally friendly?
Absolutely! The Urban Sign Post is manufactured from 100% recycled PVC, supporting sustainable and eco-conscious construction.
Â
Are the bases stackable for easy storage?
Yes, the compact, stackable design allows for efficient transport and space-saving storage when not in use.
Â
Does the base meet UK road safety regulations?
Yes, this sign post base is fully compliant with UK road safety and traffic management standards.
Â
How do I attach a sign to the base?
Simply insert the sign panel into the pre-designed slots, ensuring a secure and stable fit. Additional fixings can be used for reinforcement.
