Temporary Vertical Concrete Barriers (TVCBs) - V28

Name: Temporary Vertical Concrete Barriers (TVCBs) - V28
SKU: CB151985
Price: 1021.79 EUR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Frequently Bought Together

SKU

CB151985

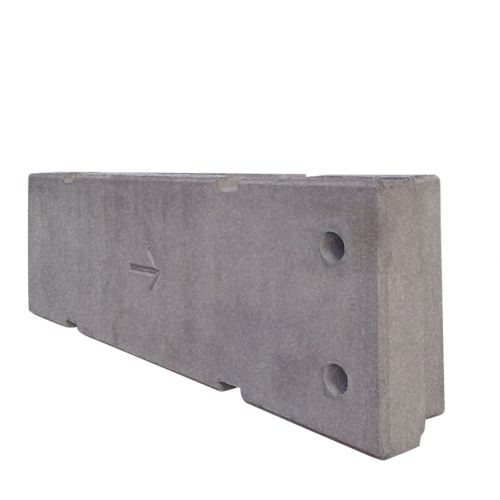

A crash tested concrete safety & security barrier - 3000mm x 450mm x 800mm - 2500kg. Our TVCB barriers are widely used both on roadways & construction sites for safely managing traffic & separating cars from pedestrians. We also offer a range of additional features, including painting the TVCBs to suit your needs, supplying fixing kits & on-ground vehicle and pedestrian gates that are especially designed to fix directly to the concrete barriers.

Please Note: These barriers are only crash tested if connected with bolts and installed by an approved technician.

As low as €830.72 €1,021.79

In stock

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

Details

Temporary vertical concrete barriers, shortened to TVCBs, are ideal for creating safe working areas for your workforce & preventing un-authorised access to private land. They are also used as traffic barriers & to help direct traffic flow as they are crash tested. We hold stock of temporary concrete safety & security barriers. If you need them urgently on a next day service then please call our team on 0800 043 2520. These concrete safety barriers are connected together at the scarf joint by M24 high tensile bolts.

We also offer on-ground vehicle gates which connect directly to the TVCB barriers, using standard concrete fixings. See our full range of on-ground gates specifcally designed to work with concrete barriers and TVCBs - TVCB Gates

Product Specifications

Overall Length	3150mm
Modular LEngth	3000mm
Width	450mm
Height	800mm
Weight	2500KG

TVCB Bolts are available to order as well – you will require 2 Bolts per Joint. For example, 3 TVCBs would have 2 Joints requiring bolts which would require 4 Bolt in total.

These precast concrete barriers are manufactured using high strength concrete (50N/mm²). This is combined with Highways Agency specified steel reinforcement to create EN1317 "Compliant Road Restraint Systems for Temporary Safety Barriers" *Please note these must be installed by a Highways Agency approved contractor to meet this standard

Containment Level	Test Vehicle	Test Speed	Angle	Test Deflection	Working Width
N1	1500kg Car	50mph	20deg	0.36m	W3
N2	1500kg Car	70mph	20deg	0.36m	W3
