Echo Barrier Enclosure
Frequently Bought Together
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
Perfect for reducing noise in smaller work areas where cutting activities occur this echo barrier enclosure ensures workers and pedestrians are kept safe from falling debris and loud noises in area where construction work is ongoing. Reducing noise up to 43dB (Compact) and 38.5dB (Large) the echo barrier enclosure also absorbs almost 100% of sound at 400-500Hz across a wide range of frequencies.
Fire, water, dust and weather resistant the echo barrier enclosure doesn’t falter in hot sun with its UV resistant coating, perfect for maintaining heat levels in hot weather whilst also retaining the vibrant colour of the echo barrier enclosure. The barrier still excels even in cold or wet weather due to its frost resistance from -40° F.
Due to its well-designed frame the echo barrier enclosure can be used indoors with an intricate roof and clear windows for safe supervision. IT has fully configurable opening panels that allow it to be adjusted depending on usage and boasts a large clear entrance that will allow workers to walk past through with ease.

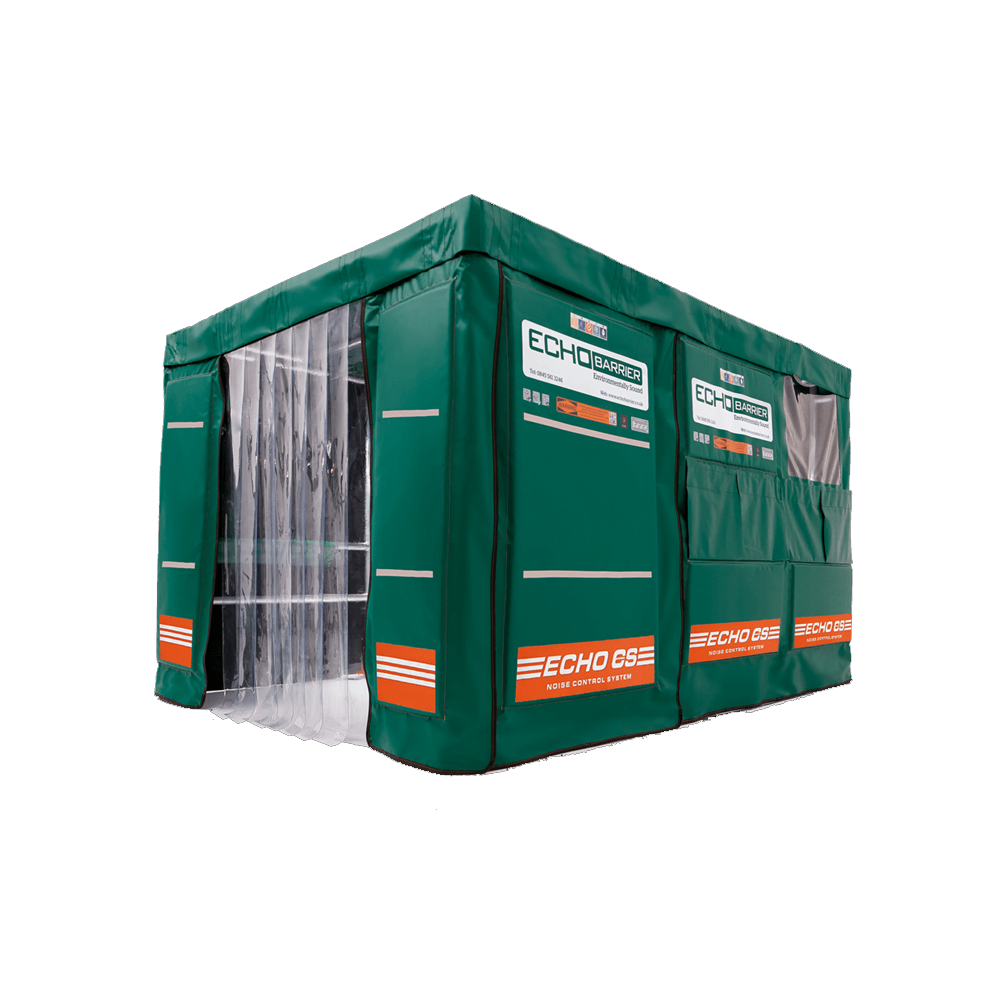

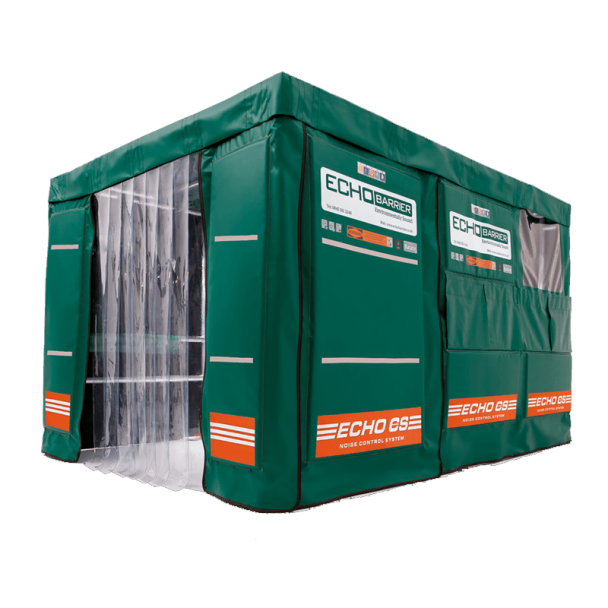

Echo Barrier Enclosure - Large
A large version of the echo barrier enclosure that absorbs and reduces noise, minimising risk for pedestrians and workers. Max noise reduction is 38.5dB and max noise absorption is 89%.
Echo Barrier Enclosure - Compact
A smaller version of the echo barrier enclosure that is more proficient in reducing and absorbing noise due to its smaller frame. Max noise reduction is 43dB with 100% noise absorption.
Product Features:
- UV & Frost resistant from -40° F to 158° F.
- Water, fire and dust resistant
- Can be used indoors
- Reducing noise up to 43dB (Compact) and 38.5dB (Large)
- Absorbs almost 100% of sound at 400-500Hz
Product Specifications - Large
| Height | Width | Length | Weight |
| 2100mm | 2400mm | 3250mm | 136KG |
| Max Noise Reduction (Lab tested) | 38.5dB (in all directions) |
| Max Noise Absorption (Lab tested) | 89% (in all directions) |
| Water Resistant Test Standard | BSEN 60529:1992 IPX6/IPX9 |
| Fire Resistant Test Standard | BS 7837-1996 (barriers), class B1 (windows/roof) |
| Dust Resistant Test Standard | BSEN 60529-1992 |
| Cold Resistant Test Standard | BSEN 60068/2/1:2007 (-40 degrees) |
| UV Resistant Test Standard | 5 Years |
Product Specifications - Compact
| Height | Width | Length | Weight |
| 2100mm | 2400mm | 2400mm | 136KG |
| Max Noise Reduction (Lab tested) | 43dB (in all directions) |
| Max Noise Absorption (Lab tested) | 100% (in all directions) |
| Water Resistant Test Standard | BSEN 60529:1992 IPX6/IPX9 |
| Fire Resistant Test Standard | BS 7837-1996, ASTM E84, EN 13501-1:2018 (barriers), class B1 (windows/roof) |
| Dust Resistant Test Standard | BSEN 60529:1992 IP4X / IP5X |
| Cold Resistant Test Standard | BSEN 60068/2/1:2007 (-40 degrees) |
| UV Resistant Test Standard | 5 Years |
