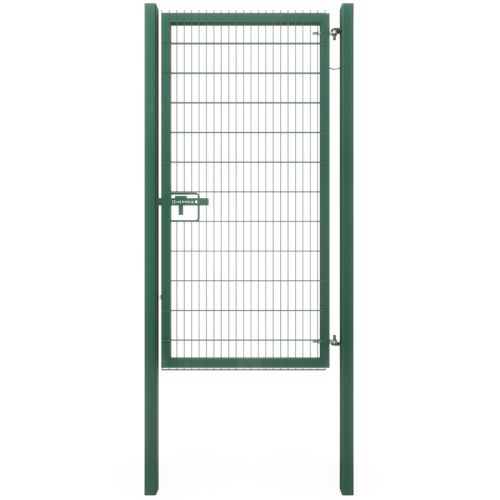

Safe Mesh Twin Wire (868) - Pedestrian Gate
Safe Mesh 868 Pedestrian Gates are commonly used in various settings such as schools, parks, residential communities, building entrances and recreational grounds. They are designed with a strong 868 formation mesh composed of two parallel 8mm horizontal wires and one vertical 6mm wire, resulting in a robust perimeter fencing solution which prevents climbing into unauthorised premises. This secure doorway entry point is excellent for increased security, privacy and crowd control, providing a clear boundary for designated pedestrian pathways or access points while controlling and regulating the flow of people entering or exiting a particular area on your site. All our Mesh Panels are manufactured to BS 4102 and galvanised to BS EN 10244-2:2001 class D, weld strength is 75% of the minimum tensile strength of the wire. Our gates are available in height ranging from 1.2 metres - 2.4 metres high and are 1250mm wide as standard.
We also offer Vehicle Gates, Individual Panels, or a Fencing System Calculator in our Safe Mesh 868 Perimeter Fencing range.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
Safe Mesh Twin Wire 868 Pedestrian Gate – Secure, Durable & Built for High Foot Traffic Areas
Upgrade your perimeter security with the Safe Mesh Twin Wire 868 Pedestrian Gate, a high-strength, durable entry solution designed for commercial, industrial, and public access points. This gate is built with 868 twin-wire mesh and offers exceptional rigidity, impact resistance, and controlled pedestrian access.
Whether securing schools, industrial sites, commercial properties, or public spaces, this heavy-duty steel pedestrian gate ensures safe and reliable entry and exit control.
Â
Why Choose the HERMEQ Twin Wire 868 Pedestrian Gate?
✔ High-Security 868 Twin Wire Mesh – Stronger than standard fencing, ideal for areas requiring enhanced protection.
✔ Heavy-Duty Steel Construction – Galvanised & powder-coated for durability in all weather conditions.
✔ Secure Locking System Options – Choose from a Locinox lock system or a simple slide latch for padlock compatibility.
✔ Adjustable Eye Bolts (19-35mm) – Allows for precise fitting on-site, ensuring seamless installation.
✔ Available in Multiple Heights & Widths – Customisable to meet specific security and access control needs.
Â
Ideal for a Range of Applications
The Safe Mesh Twin Wire 868 Pedestrian Gate is perfect for:
- Industrial & Construction Sites – Controls foot traffic & prevents unauthorised access.
- Commercial Properties & Warehouses – Ensures secure entry points for employees & visitors.
- Schools, Playgrounds & Public Spaces – Provides a safe & secure pedestrian entry solution.
- Utility Compounds & Restricted Areas – Keeps high-risk locations secure & accessible only to authorised personnel.
Â
Weather-Resistant Powder Coating & Colour Options
Our state-of-the-art GEMA powder coating process ensures a smooth, high-quality finish that enhances durability while maintaining a professional appearance.
- Standard Colours: Green (RAL 6005) & Black (RAL 9005)
- Custom RAL Colours Available: Bespoke powder-coating options are available to match your site’s branding or aesthetic.
- Corrosion-Resistant Finish: Ensures long-term durability against rust, moisture & environmental wear.
Â
Locking Mechanisms
- Slide Latch System – A simple and effective locking method where a slide latch secures the two gate leaves together, allowing you to use a padlock for extra security.
- Premium Locinox Lock System – This high-performance locking system is fitted on-site, with pre-drilled holes for easy installation. Featuring dual handles for convenient operation and a key lock for added security, the Locinox system ensures enhanced access control.
Â
Technical Specifications & Industry Standards
- Material: 868 twin-wire mesh & reinforced steel frame
- Locking Mechanism Options: Slide latch or premium Locinox lock
Hinges & Fixings: Pre-installed eye bolts (19-35mm) for easy site adjustments on uneven ground. - Gate Post Sizes: Up to 1.2m wide → 80 x 80 x 5mm posts
-                  1.2m - 2m wide → 100 x 100 x 5mm posts for added stability
Â
Manufactured to the Highest UK & EU Safety Standards
✔ Mesh Panels: Conform to BS 4102, galvanised to BS EN 10244-2:2001 Class D
✔ Steel Posts & Frames: Manufactured to BS EN 10210-2:1997, galvanised to BS EN 10346:2009
✔ Powder Coating: Meets BS EN 13438:2005 (minimum 100-micron thickness)
✔ Welding Standards: BS EN 1011-1 & BS EN 1011-2, ensuring high structural integrity
Â
Installation & Maintenance
Quick & Easy Installation: Supplied with pre-drilled post holes & secure fixings for hassle-free setup.
Adjustable Hinges & Eye Bolts: Designed for seamless alignment on uneven surfaces.
Low Maintenance: The powder-coated, galvanised finish protects against corrosion, requiring minimal upkeep.
Â
Customisable Gate Specifications
Need Custom Gate Drawings? – Our expert CAD technicians can provide detailed technical drawings upon request.
The height and width of your V Mesh gate determine the exact specifications. Our mechanical engineers & CAD technicians can provide standard gate drawings or create bespoke designs to match your requirements.
Â
Order Your Secure Pedestrian Gate Today!
Looking for a strong, durable & customisable pedestrian access solution? The HERMEQ Safe Mesh Twin Wire 868 Pedestrian Gate is built to last, secure, and protect.
Contact us now for expert advice or a custom quote!
Fast Nationwide Delivery Available!
Â
HERMEQ stocks a wide range of V Mesh Perimeter Fencing, Vehicle Access Gates, Permanent Fencing & Temporary Fencing conforming to all required safety specifications and regulations.
Â
Need any help? Contact HERMEQ Today.
Contact our team via phone 01-8063798, email sales@hermeq.ie or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
Frequently Asked Questions (FAQs)
How does the 868 Twin Wire Mesh differ from 656 Twin Wire?
The 868 mesh consists of two 8mm horizontal wires and one 6mm vertical wire, making it stronger and more rigid than the 656 mesh, which uses thinner 6mm horizontal wires. This added strength makes it ideal for high-security applications.
Â
Can I order a custom-sized pedestrian gate?
Yes! We offer bespoke sizes to match your security and access needs. Contact us today for custom gate specifications and CAD drawings.
Â
Is this gate suitable for long-term outdoor use?
Absolutely! The galvanised steel frame & powder-coated finish provide superior weather resistance, protecting against rust, UV exposure & moisture.
Â
What locking system should I choose?
Slide Latch System – Ideal for basic security (can be locked with a padlock).
Locinox Lock System – Recommended for higher security needs, featuring a handle & key-locking mechanism.
