Welded Mesh Gabions

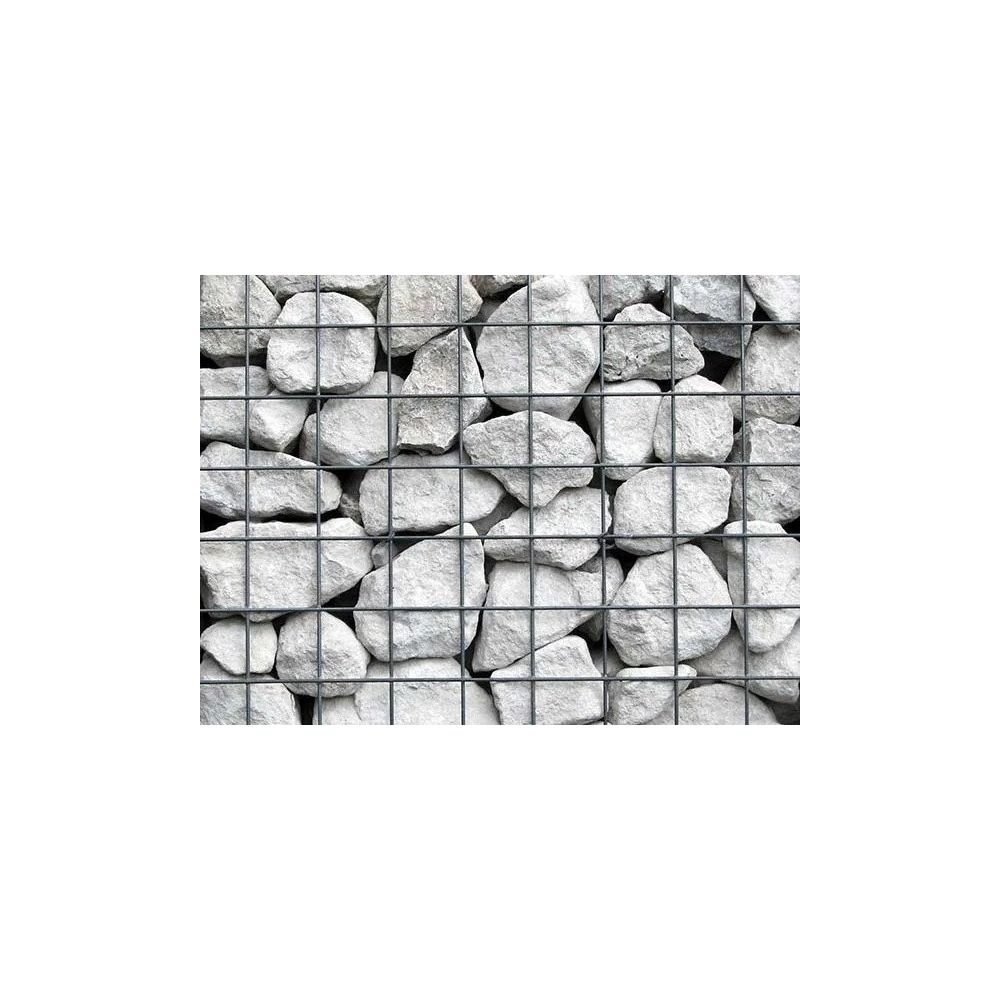

main product photo
SKU
MP5536
Our Welded Mesh Gabions are manufactured with square mesh wires welded together at their intersection points. These mesh gabions have many applications including erosion defence, river control, reservoirs, retaining walls and agricultural and commercial landscaping. They are easily installed being stood up and attached together to form a retaining wall configuration. We have three wire sizes available depending on your installation requirements.

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

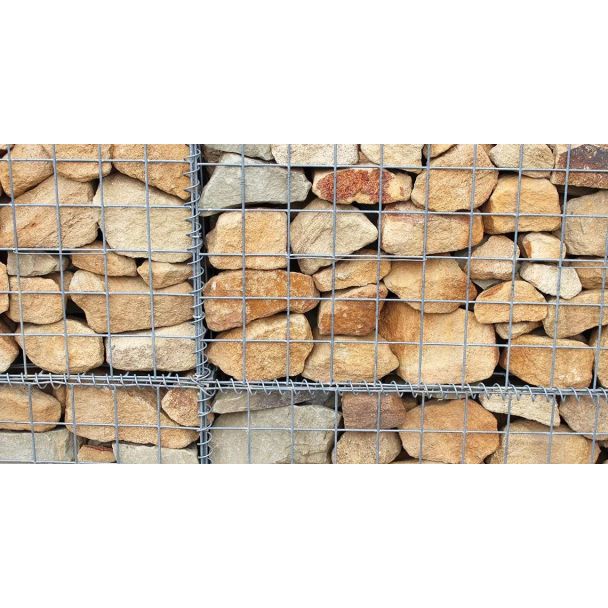

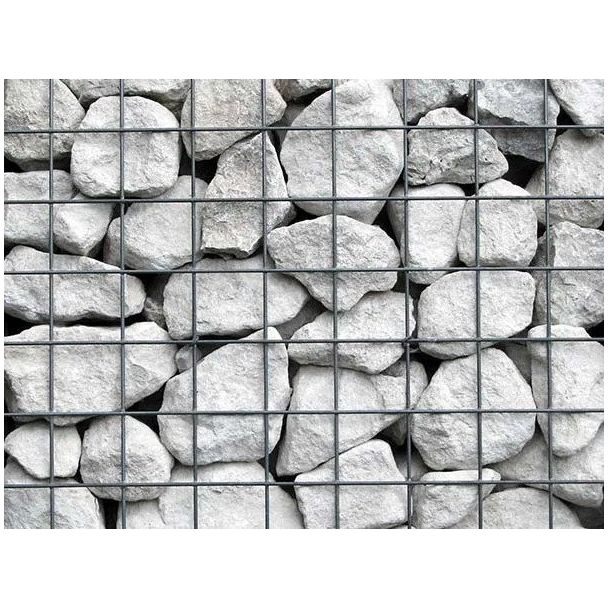

These Bi-axial Welded Mesh Gabions are manufactured with a square mesh – 75mm x 75mm – with wires welded together at their intersection points. These mesh gabions have many applications including erosion defence, river control, reservoirs, retaining walls and agricultural and commercial landscaping.

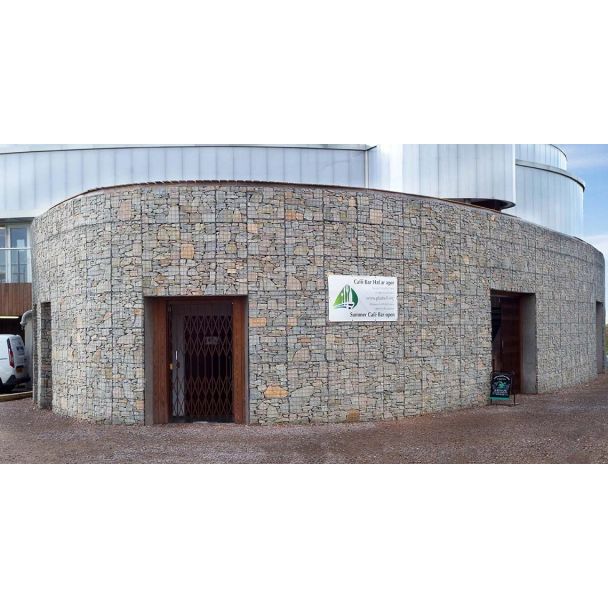

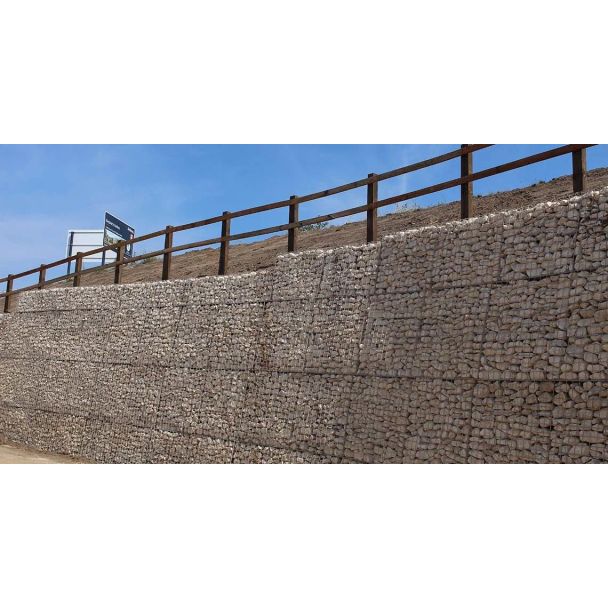

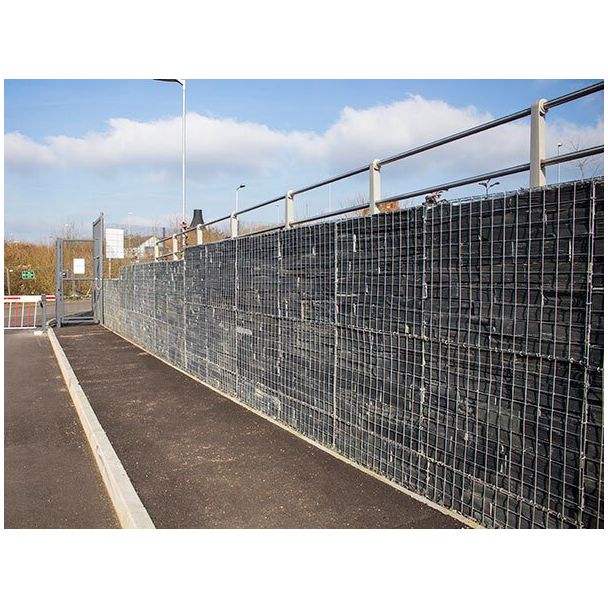

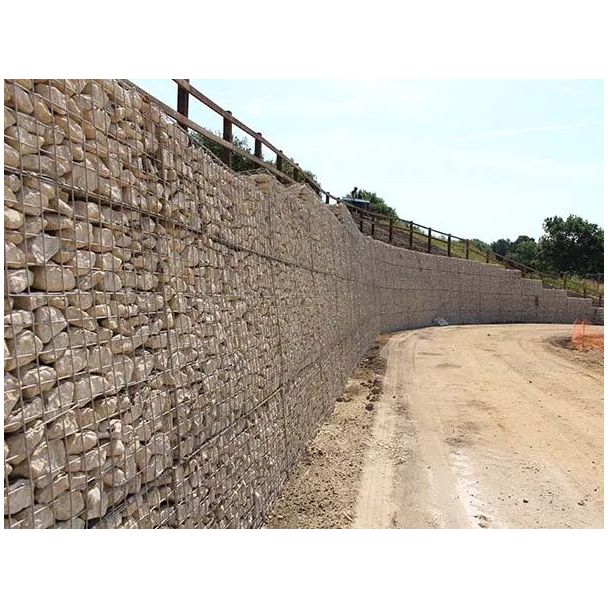

They are easily installed being stood up and attached together to form a retaining wall configuration – the mesh does not require tensioning and this allows them to keep their shape to fit easily against a wall.

The mesh is Galfan coated and manufactured in accordance with the requirements of BS EN 10223-8:2013 where the gabions are considered to have a life expectancy of up to 50 years. The wire is highly durable and has excellent resistance to natural forces such as water.

Product Specifications

FabricBi-axial Welded Mesh
Tensile Wire StrengthWelded: 540 to 770 N/mm²
Wire Sizes
  • 3mm diameter – typically used on lower retaining walls
  • 4mm diameter – used on medium to high retaining walls
  • 5mm diameter – heaviest wire used for highest structures
Weld Strength75% of the minimum ultimate tensile strength of the wire

HERMEQ stock a wide-range of Geotechnics, Geotextiles, Geomembranes & Root Barriers conforming to all required safety specifications and regulations.
